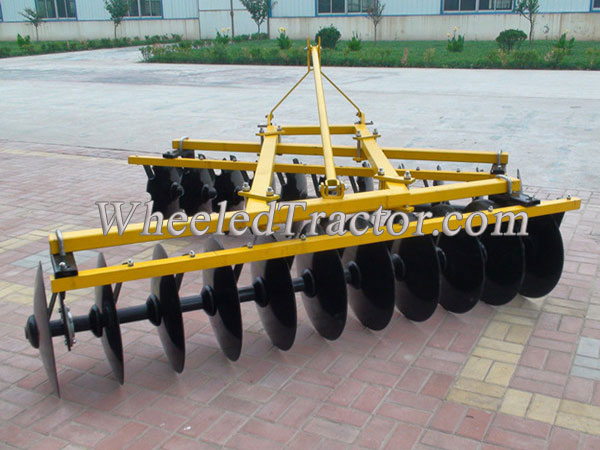

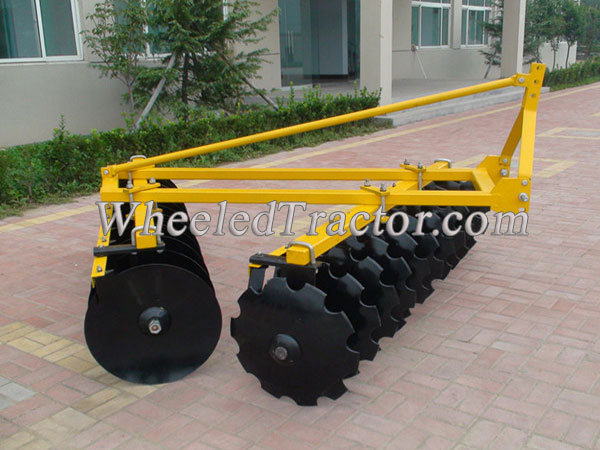

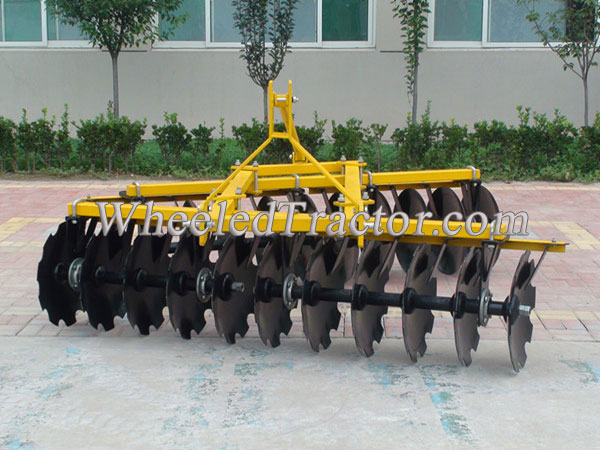

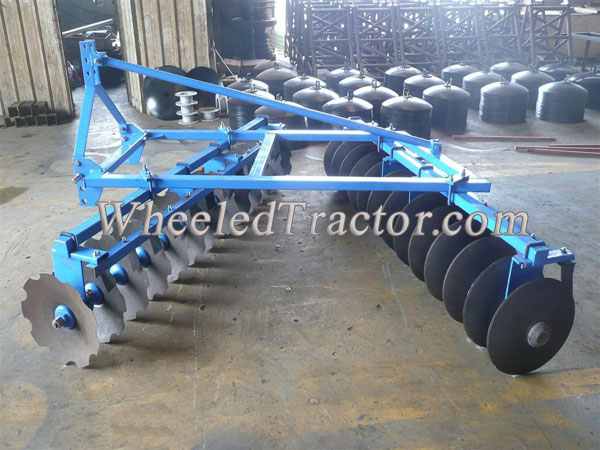

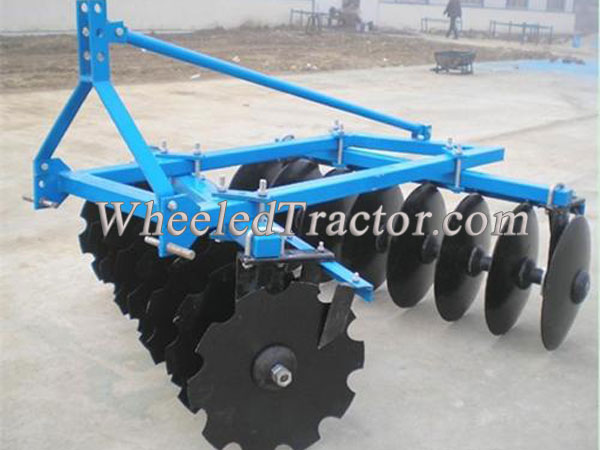

1BJX Series Intermediate Disc Harrow
1BJX Series Intermediate Disc Harrow,with high strength beams made of high-quality steel, is designed for working in medium soil condition. The harrow is used for breaking up the ground.
online service
Product Description:
Technique parameter:• 32×32 square shaft used, 230mm spacing between discs
1BJX Series Intermediate Disc Harrow, with high strength beams made of high-quality steel, is designed for working in medium soil condition. The harrow is used for breaking up the ground, shattering the clods, smashing and mixing crop stubbles into soil as green manures etc. Three point mounted linkage method facilitates the harrow to work and transport in top speed when connecting with tractor.
• Specially suitable for harrowing in medium soil condition
• Tubular structure harrow beams of high-strength used, much stable during work
• Favorable harrowing effect with deep cultivating depth
• Three point mounted with tractor, can easily operate in land corners or turned around with high speed
| Model | 1BJX-1.8 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
| Working width(m) | 1.8 | 2.0 | 2.2 | 2.4 | 2.5 |
| Working depth(mm) | 140 | ||||
| No. of disc | 16 | 18 | 20 | 22 | 24 |
| Disc diameter | 22’’ | 22’’ | 22’’ | 22’’ | 22’’ |
| Weight(kg) | 390 | 434 | 463 | 604 | 760 |
| Tractor power(hp) | 45 | 50 | 55-65 | 65-75 | 80 |
| Linkage | Standard three pointed mounted | ||||
