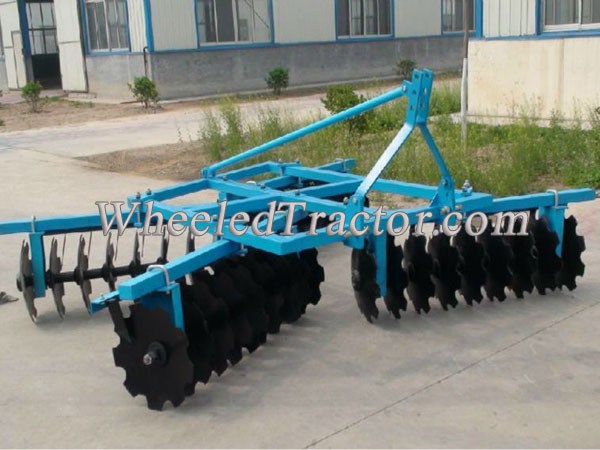

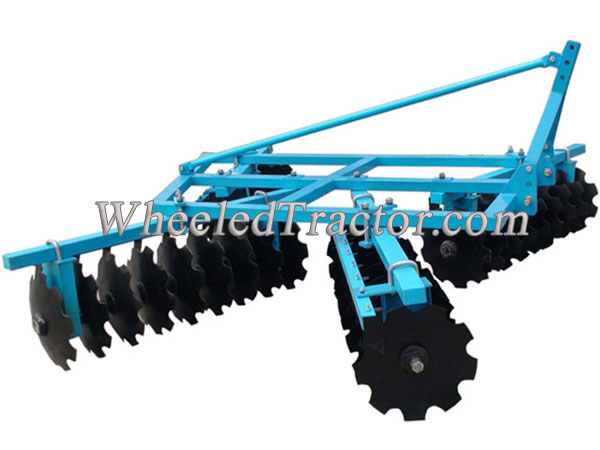

1BQD Contrapositive Disc Harrow
1BQD contrapositive disc harrow,1BQD Series Light Duty Contrapositive Offset Disc Harrow is used for ground breaking-up, soil lump smashing and crop residues mixing into soil as green manures.
online service
Product Description:
Technique parameter:
1BQD Series Light Duty Contrapositive Offset Disc Harrow, with compact structure design, is used for ground breaking-up, soil lump smashing and crop residues mixing into soil as green manures. This series harrows perform excellently in small area that are difficult to harrow and with steep slopes.
• 28×28 square harrow shaft used, 165mm spacing between discs
• High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade
• Compact harrow structure, convenient for assembly and adjustment
• High harrowing speed and efficiency when three point mounted with tractor rear
• Especially performing well in rugged land with more steep slopes
• Harrow’s opposing structure designing facilitates deep and thorough harrowing
• High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade
• Compact harrow structure, convenient for assembly and adjustment
• High harrowing speed and efficiency when three point mounted with tractor rear
• Especially performing well in rugged land with more steep slopes
• Harrow’s opposing structure designing facilitates deep and thorough harrowing
|
Model
|
1BQD-1.6
|
1BQD-2.0
|
1BQD-2.4
|
1BQD-3.0
|
1BQD-3.6
|
|
Working width(m)
|
1.6
|
2.0
|
2.4
|
3.0
|
3.6
|
|
Working depth(mm
|
100-140
|
||||
|
No. of disc
|
16
|
20
|
24
|
28
|
36
|
|
Disc diameter
|
18’’
|
18’’
|
18’’
|
18’’
|
18’’
|
|
Weight(kg)
|
330
|
380
|
440
|
510
|
580
|
|
Tractor power(hp
|
30
|
45
|
60
|
60-70
|
70-80
|
|
Linkage
|
Standard three point mounted
|
||||
