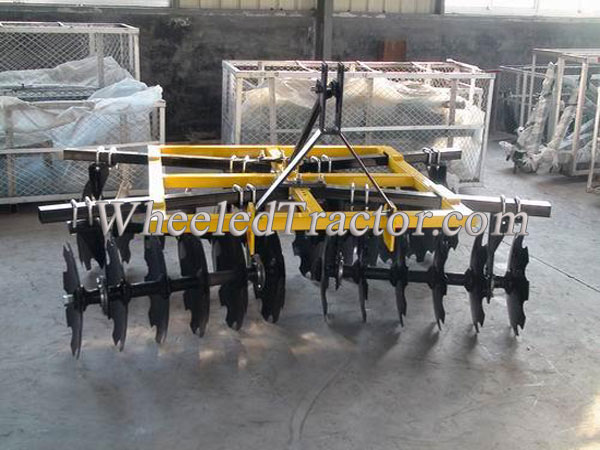

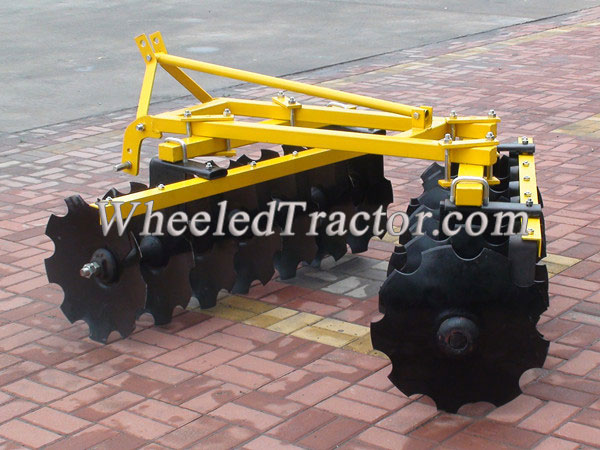

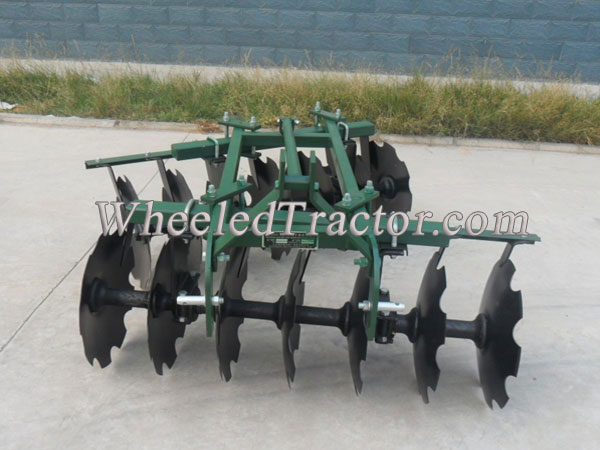

1BQX Light-Duty Disc Harrow
1BQX light-duty mounted disc harrow,1BQX Series Light Duty Offset Disc Harrow is designed specially for small areas that are difficult to harrow and with steep slopes. The disc harrow is used for breaking up the ground, shattering soil lumps and mixin
online service
• High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade.
• Compact harrow structure, convenient for assembly and adjustment

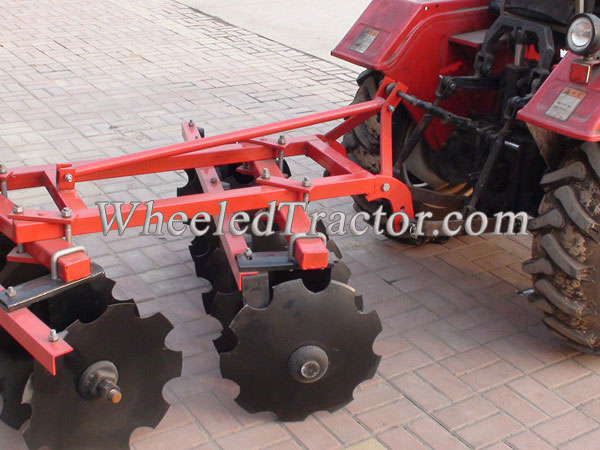

• High harrowing speed and efficiency when three point mounted with tractor rear
• Especially performing well in rugged land with more steep slopes

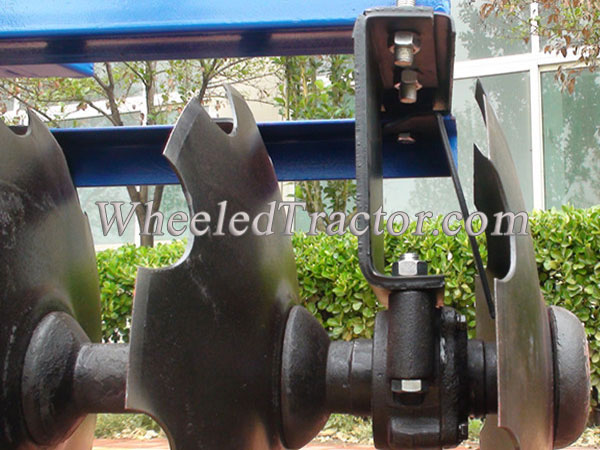

• Disc harrow adopting using bearing combinations with a grease filling hole on it, keeping sand or soil from going into bearing to cause break down and maintaining conveniently
Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 |
Working width(m) | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | 2.3 |
Working depth(mm) | 140 | |||||
No. of disc | 12 | 14 | 16 | 18 | 20 | 24 |
Disc diameter | 18’’ | 18’’ | 18’’ | 18’’ | 18’’ | 18’’ |
Weight(kg) | 200 | 220 | 240 | 260 | 310 | 360 |
Tractor power(hp) | 12 | 15 | 25 | 30-35 | 35-45 | 50 |
Linkage | Standard three pointed mounted |
