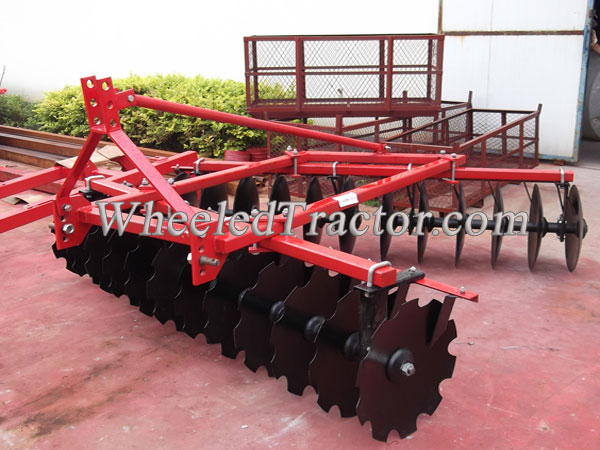

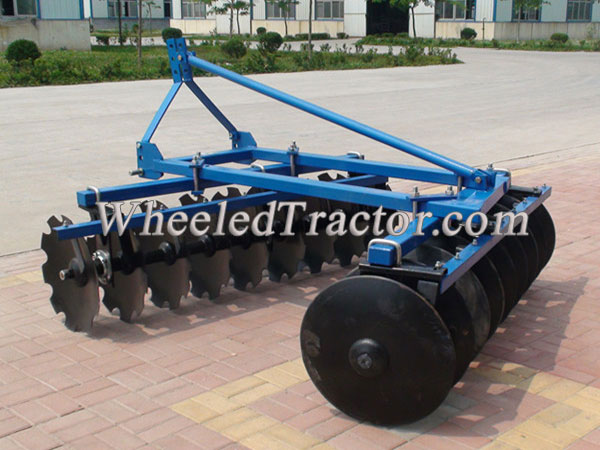

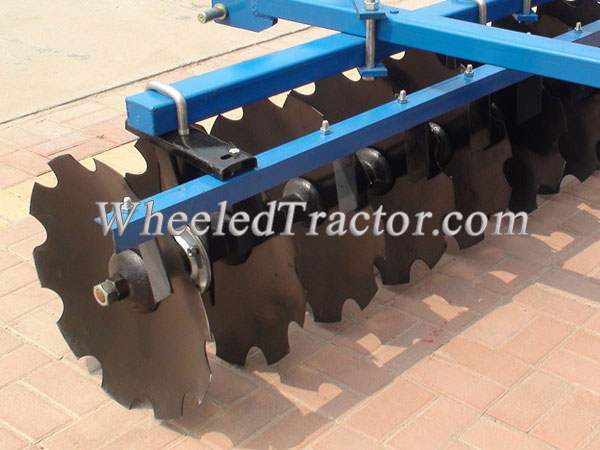

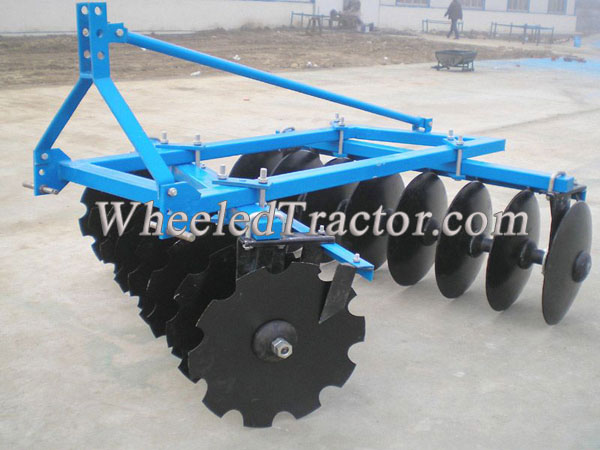

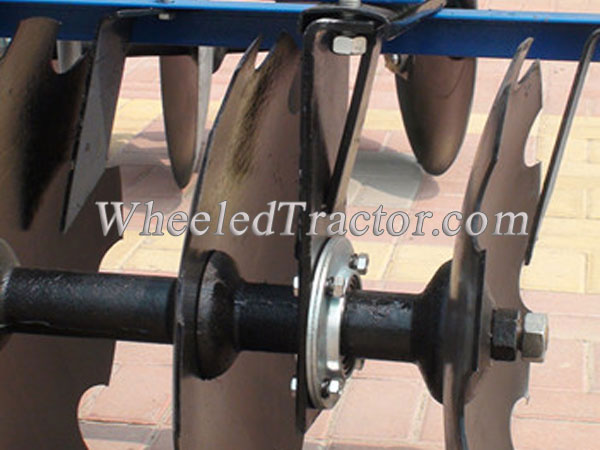

1BJX Offset Middle Disc Harrow
1BJX Offset Middle Disc Harrow, Three point mounted with farm tractor, can easily operate in land corners or turned around with high speed
online service
Product Description:
Technique parameter:• 32×32 square harrow shaft used, 225mm spacing between discs
1BJX Series Offset Middle Disc Harrow, with high-strength harrow beams made of high-quality steel, is designed for harrowing in medium soil condition. The disc harrow is used for breaking up the ground, shattering the clods, smashing and mixing crop stubbles into soil as green manures etc. Three point mounted linkage method facilitates the disc harrow to harrow and transport in top speed when connecting with tractor.
• High Carbon disc blade hardness: 38 - 44 HRC, assuring the toughness and wear ability of disc blade.
• Specially suitable for harrowing in medium soil condition
• Tubular structure harrow beams of high-strength used, much stable during work
• Favorable harrowing effect with deep cultivating depth
• Three point mounted with farm tractor, can easily operate in land corners or turned around with high speed
| Model | 1BJX-1.8 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
| Working width(m) | 1.8 | 2.0 | 2.2 | 2.4 | 2.5 |
| Working depth(mm) | 140 | ||||
| No. of disc | 16 | 18 | 20 | 22 | 24 |
| Disc diameter | 22’’ | 22’’ | 22’’ | 22’’ | 22’’ |
| Weight(kg) | 390 | 434 | 463 | 604 | 760 |
| Tractor power(hp) | 45 | 50 | 55-65 | 65-75 | 80 |
| Linkage | Standard three pointed mounted | ||||
