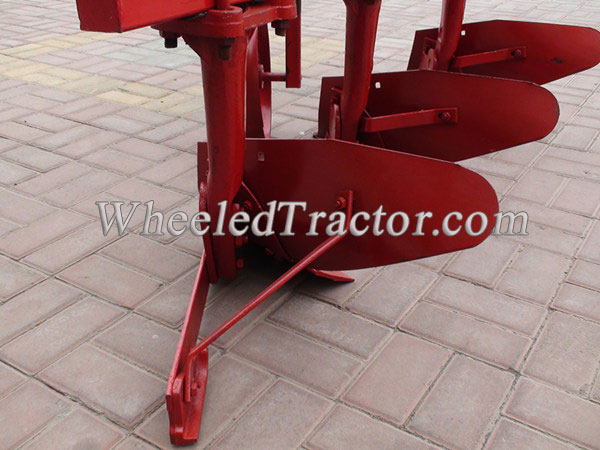

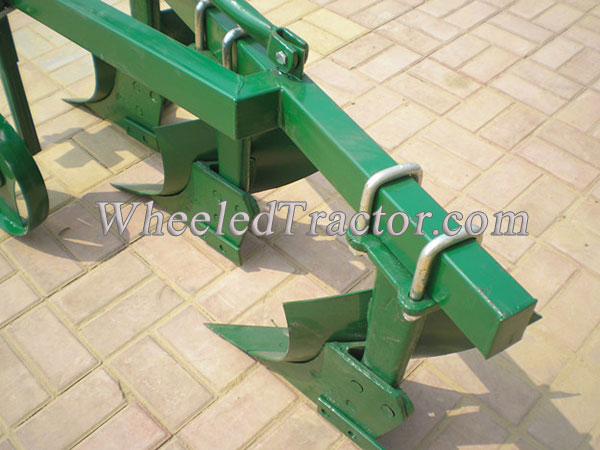

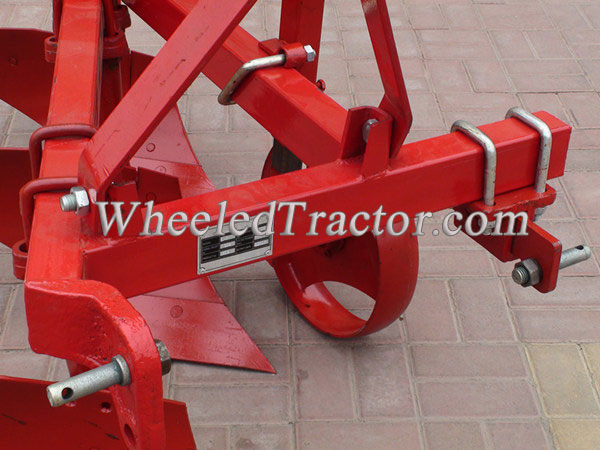

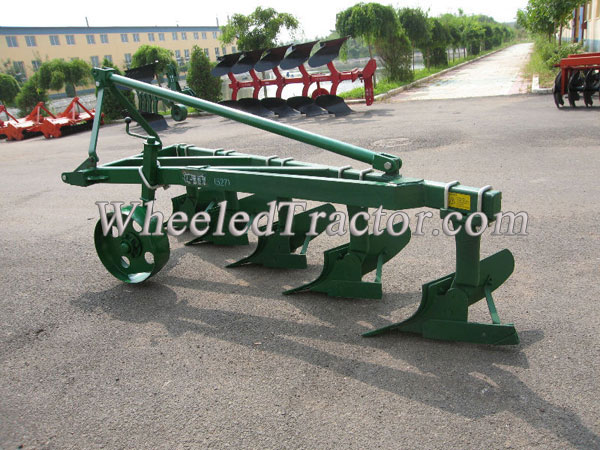

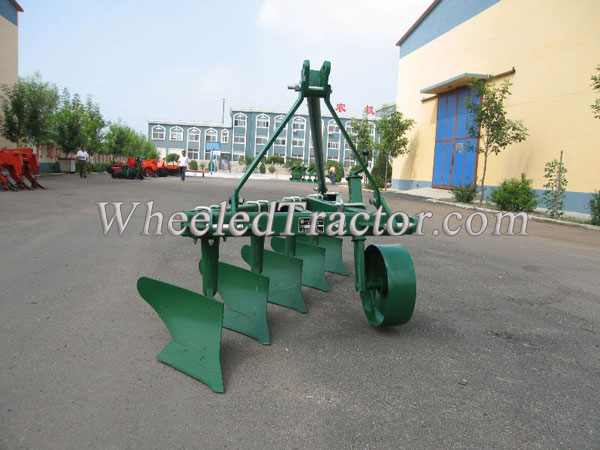

1L(30/35) Share Plough
1L(30/35) Share Plough
online service
Product Description:
The 1L series share plough is suitable for loam, or sandy loam soils in the cultivated area. It is compact in construction, and versatile in application.
After plowing, the land surface is smooth and the furrow is narrow with a good pulverization and mulching.
Technique parameter:
• Ploughing Suitable for sandy loam, loam, clay soil and paddy field.
• The upper layer of soil and organic compounds on the surface are reversed deeply under the earth.
• Plowing green manures, trashes and organic matter is effectively mixed with the soil and decays rapidly into humus.
• The soils are well crushed and after working, the land surface is plane.
The 1L series share plough is suitable for loam, or sandy loam soils in the cultivated area. It is compact in construction, and versatile in application.
After plowing, the land surface is smooth and the furrow is narrow with a good pulverization and mulching.
Technique parameter:
• Ploughing Suitable for sandy loam, loam, clay soil and paddy field.
• The upper layer of soil and organic compounds on the surface are reversed deeply under the earth.
• Plowing green manures, trashes and organic matter is effectively mixed with the soil and decays rapidly into humus.
• The soils are well crushed and after working, the land surface is plane.
| Model | unit | 1L-230 | 1L-330 | 1L-430 | 1L-530 |
| Working width | m | 0.6 | 0.9 | 1.2 | 1.5 |
| Working depth | mm | 250 | 250 | 250 | 250 |
| No. of bottoms | set | 2 | 3 | 4 | 5 |
| Matched power | HP | 35 | 50 | 65 | 80 |
| Overall weight | kg/set | 197 | 248 | 344 | 330 |
| Linkage | standard three point mounted | ||||
| Model | unit | 1L-335 | 1L-435 | 1L-535 | 1L-635 |
| Working width | m | 1.05 | 1.4 | 1.75 | 2.1 |
| Working depth | mm | 270~300 | |||
| No. of bottoms | set | 3 | 4 | 5 | 6 |
| Matched power | HP | 55-65 | 65-80 | 80-120 | 100-120 |
| Overall weight | kg/set | 388 | 432 | 520 | 613 |
| Linkage | standard three point mounted | ||||
