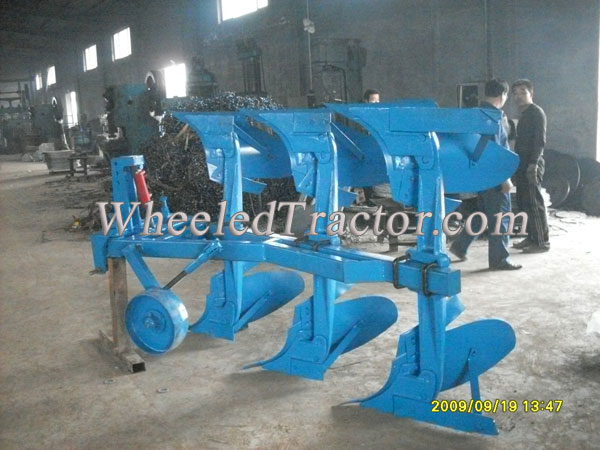

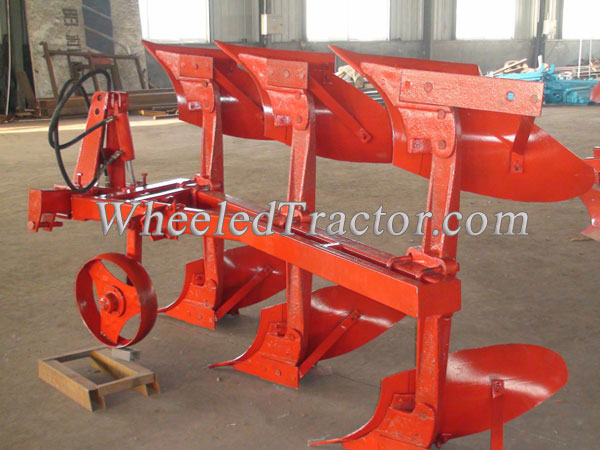

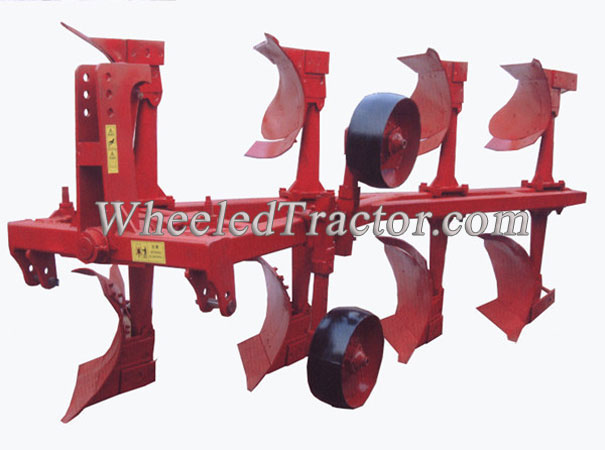

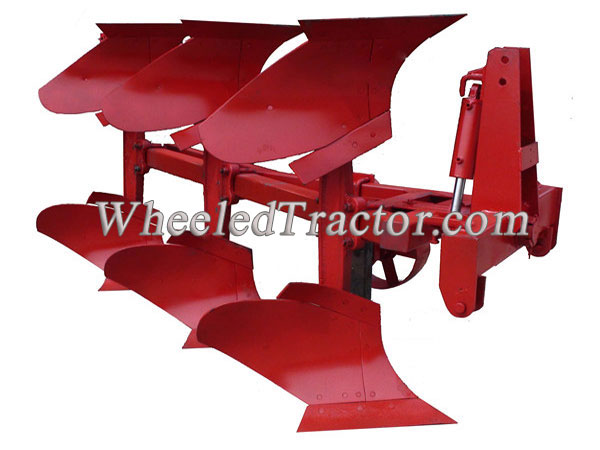

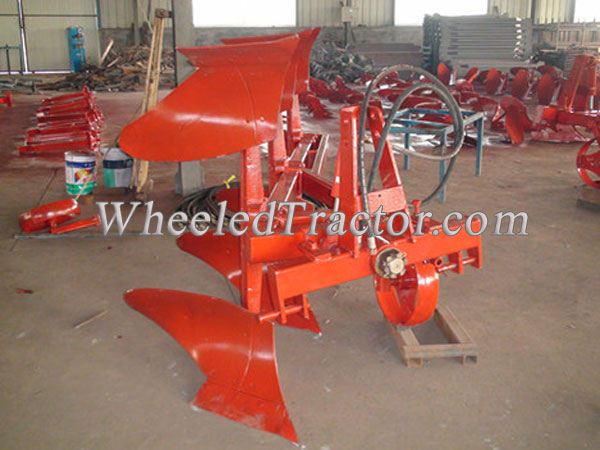

1LF Hydraulic Reversible Plough
1LF Hydraulic Reversible Plough, hydraulic reversible plough has a compact structure and suitable for working on all various land with the well working performance of the machine, after cultivation
online service
The 1LF Reversible Plough is a unique implement, which is directly mounted to the tractor. This is a hydraulically operated basic implement for preparation of land. The reversible plough is very useful in hard and dry trashy stumpy land condition and in soil where scouring is a problem. Heavy-duty clearance allows the plough to operate under heavy crop residual. This plough works on both the left and right side and automatically reverses the position while ploughing hence less time & diesel consumption. This plough is more suitable for big pieces of land.
It has a compact structure and suitable for working on all various land. with the well working performance of the machine, after cultivation, the land surface is levelling, the soil clods well crushed and turned over and the furrows is small.
Parameters:
Parameters:
| Model | Unit | 1LF-330 | 1LF-430 | 1LF-530 |
| Number of bottom | 6 | 8 | 10 | |
| Working width | m | 0.9 | 1.2 | 1.5 |
| Working depth | mm | 160~250 | ||
| Matched power | hp | 55~65 | 65~90 | 100~120 |
| Linkage | Standard three point mounted | |||
| Model | Unit | 1LF-235 | 1LF-335 | 1LF-435 |
| Number of bottom | 4 | 6 | 8 | |
| Working width | m | 0.7 | 1.05 | 1.4 |
| Working depth | mm | 200~300 | ||
| Matched power | hp | 40~50 | 50~70 | 70~90 |
| Linkage | Standard three point mounted | |||
