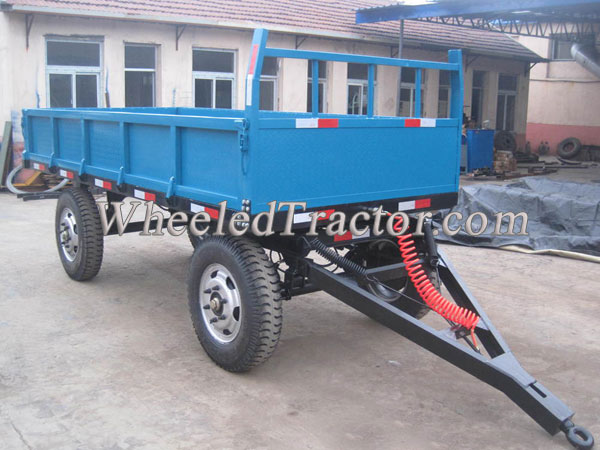

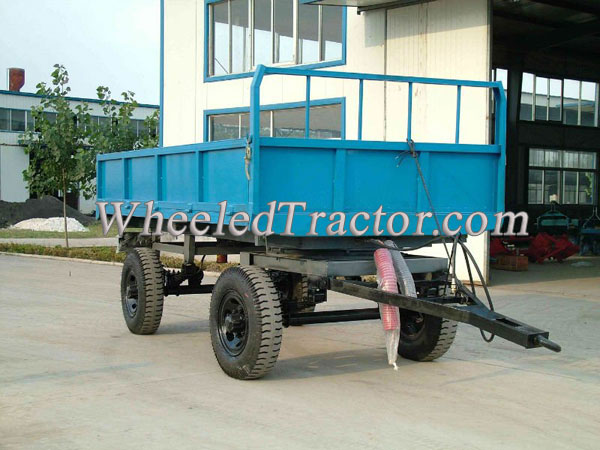

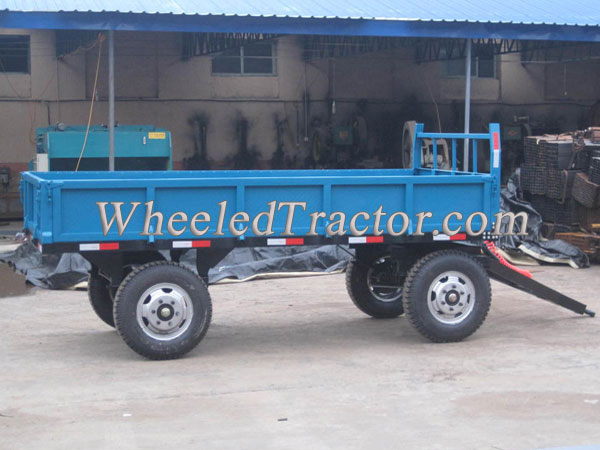

7CX Double Axle Tipping Trailer
Product Description: Double axle farm trailer included hydraulic tipping trailer and un-discharging trailer. It is producted in accordance with national standards. this tractor trailed trailer suitable for transporting in the farm land. Technique par
online service
Product Description:
Technique parameter: • All side boards remove easily.
Double axle farm trailer included hydraulic tipping trailer and un-discharging trailer. It is producted in accordance with national standards. this tractor trailed trailer suitable for transporting in the farm land.

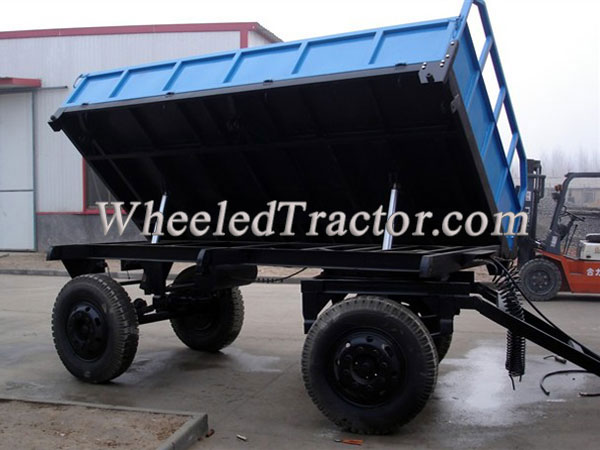

• Hydraulic tipping system to drop side and rear drop.
• Double axle trailer for tractor.25-120hp
• Max. load capacity – 10tons
• With lights.
• Formed frame construction
• Expanded steel floor
• Powder-coated paint finish
• Strong and simple
| Model | unit | 7CX-3 | 7CX-4 | 7CX-5 | 7CX-6 | 7CX-7 | 7CX-8 | 7CX-9 | 7CX-10 | |
| Name | Four wheel trailer-double axle trailer-hydraulic tipping trailer | |||||||||
| Capacity | Ton | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
| Box size | m | 2x1x0.5 | 2.2x1.2x0.5 | 2.5x1.5x0.5 | 2.6x1.6x0.5 | 2.8x1.6x0.5 | 4.3x2x0.5 | 4.8x2x0.5 | 5.2x2x0.5 | |
| Tyre | 750-16 | 750-16 | 825-16 | 825-16 | 900-20 | 900-20 | 900-20 | 900-20 | ||
| Matched power | hp | 25-30 | 30-40 | 40-50 | 50-55 | 55-60 | 60-65 | 65-70 | 80-100 | |
| Brake | Air brake | |||||||||
| Linkage | Trailed | |||||||||
