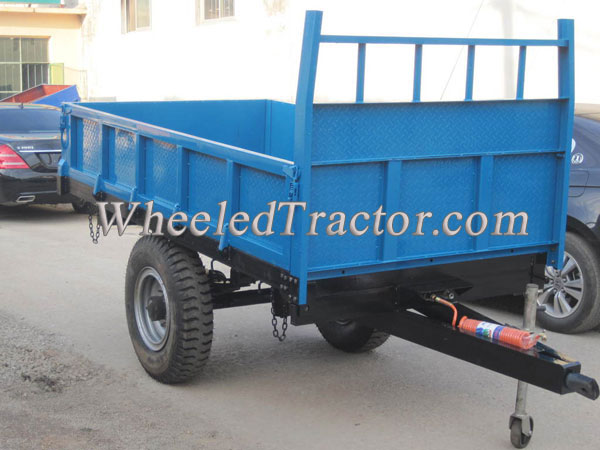

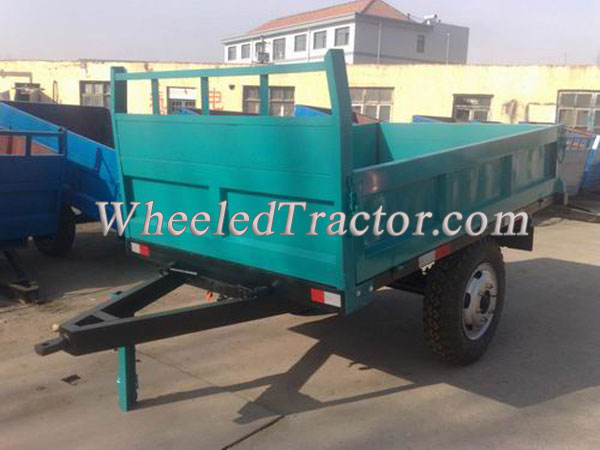

7CX Single Axle Hydraulic Tipping Trailer
7CX Single Axle Hydraulic Tipping Trailer,
online service
Product Description:
Technique parameter:
The Single axle hydraulic Tipping trailer is suitable for a variety of domestic and foreign 15-30 horsepower micro-farming machine, small four wheel tractor, used to mountain area, farmland operation, suitable for small-scale farmers' household purchasing.
• Could be Self-discharging by the Hydraulic system in rear dumping
• Single axle with 2 tires
• All steel body Robust construction trailers provide a selection of sizes from 1.5-4 tons.
• Rear Barn Doors
• This series of tractor hydraulic dumping trailers are mainly used for light-duty transportation.
• Single axle with 2 tires
• All steel body Robust construction trailers provide a selection of sizes from 1.5-4 tons.
• Rear Barn Doors
• This series of tractor hydraulic dumping trailers are mainly used for light-duty transportation.
| Model | unit | 7CX-1.5 | 7CX-2 | 7CX-2.5 | 7CX-3 | 7CX-4 | |
| Name | Hydraulic tipping trailer | ||||||
| Capacity | Ton | 1.5 | 2 | 2.5 | 3 | 4 | |
| Box size | m | 2x1x0.45 | 2.2x1.2x0.45 | 2.5x1.5x0.5 | 2.6x1.6x0.55 | 2.8x1.6x.55 | |
| Tyre | 650-16 | 650-16 | 750-16 | 750-16 | 825-16 | ||
| Matched power | hp | 15 | 20 | 25 | 25-30 | 30-40 | |
| Brake | Machinery brake | ||||||
| Linkage | Trailed | ||||||
