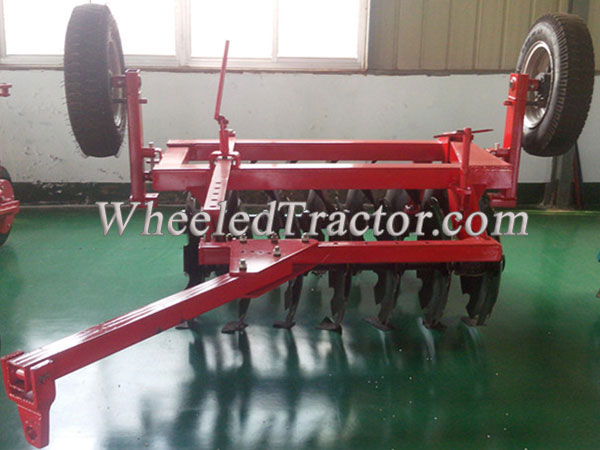

TSM Hinge Offset Heavy Disc Harrow
TSM Series Hinge Offset Heavy Disc Harrow is used for breaking up the ground and ventilating the soil, shattering the clods, eliminating weeds and stubbles in the soil, and mixing them into soil as green manures
online service
Product Description:
Technique parameter:
TSM Series Hinge Offset Heavy Disc Harrow is used for breaking up the ground and ventilating the soil, shattering the clods, eliminating weeds and stubbles in the soil, and mixing them into soil as green manures. The harrow performs well in soil preparation before sowing, pasture renovation and any other deep tillage working.
• 42mm diameter round harrow shaft used, 225mm spacing between discs, matching 7.00-16 tires
• High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade
• Tubular structure with high-strength steel beam, bold round 42mm harrow shaft and 26’’ harrow discs used, angle of trailing rod adjustable, more convenient and durable in harrowing work
• The disc harrow can cut roots, eliminate weeds and smash stubbles and residues in soils with good effect

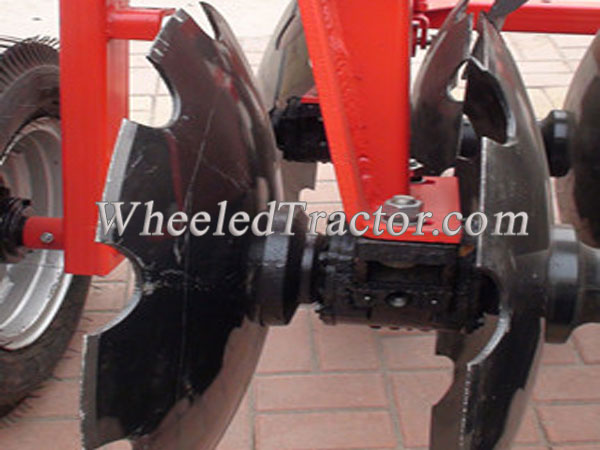

• Bearing combinations used on the harrow axles, with a grease filling hole on it, keeping sand or soil from going into bearing to cause break-down and maintaining conveniently

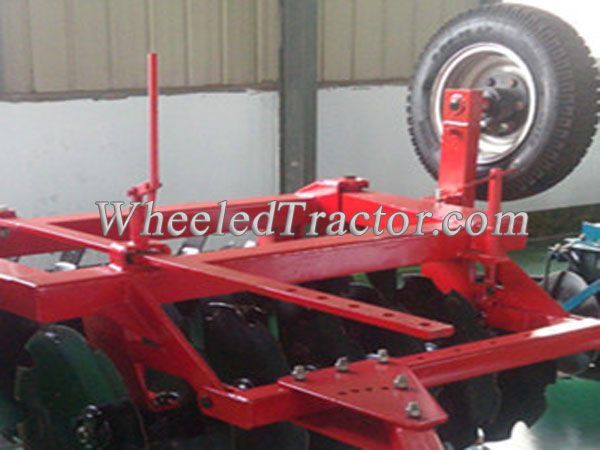

• Harrow matching double tires, raising up when harrowing, putting down after working, facilitating harrow’s transportation
• High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade
• Tubular structure with high-strength steel beam, bold round 42mm harrow shaft and 26’’ harrow discs used, angle of trailing rod adjustable, more convenient and durable in harrowing work
• The disc harrow can cut roots, eliminate weeds and smash stubbles and residues in soils with good effect
• Bearing combinations used on the harrow axles, with a grease filling hole on it, keeping sand or soil from going into bearing to cause break-down and maintaining conveniently
• Harrow matching double tires, raising up when harrowing, putting down after working, facilitating harrow’s transportation
| Model | TSM-12 | TSM-14 | TSM-16 | TSM-18 | TSM-20 |
| Working width(mm) | 1500 | 1750 | 2000 | 2300 | 2570 |
| Working depth(mm) | 200 | ||||
| No. of disc | 12 | 14 | 16 | 18 | 20 |
| Disc diameter | 26’’ | 26’’ | 26’’ | 26’’ | 26’’ |
| Type of disc | Notched | ||||
| Type of shaft | Round 42 | Round 42 | Round 42 | Round 42 | Round 42 |
| Weight(kg) | 800 | 900 | 1000 | 1150 | 1300 |
| Tractor power(hp) | 75-80 | 80-90 | 90-100 | 100-120 | 120-140 |
| Linkage | Trailed | ||||
