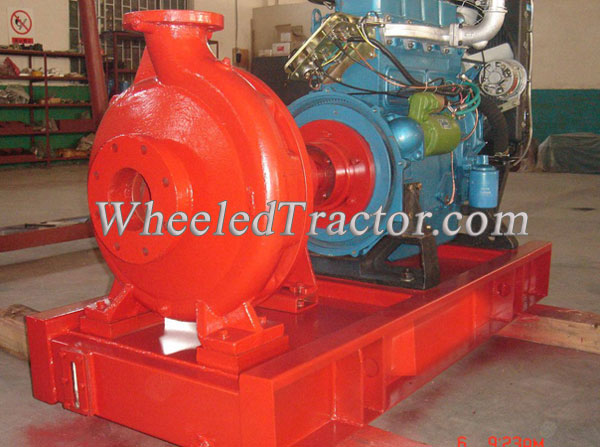

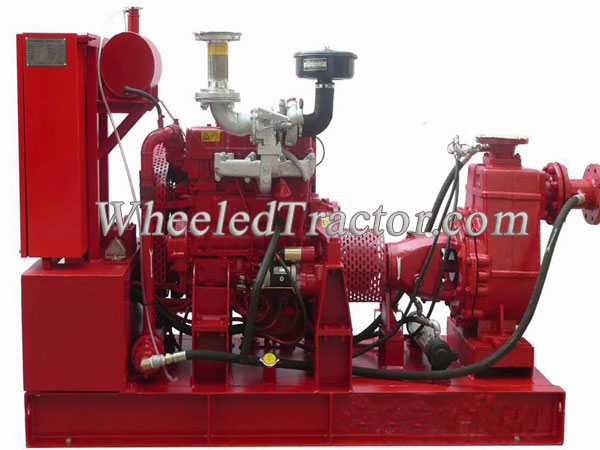

Diesel Engine Fire Pump Set
Diesel Engine Fire Pump Set, Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service
online service
Fire Fighting Water Pump 1)4100 diesel engine 2)casing:cast iron 3)impeller:bronze(optional) 4)shaft:stainless steel(option) Diesel Water Pump Set, Fire Fighting
| Model of Diesel pump set | 30GPK01(Q=120m³/h H=48.5m) |
| Usuage | Fire fighting |
| Treated Water | FRESH WATER/RIVER WATER |
| Model Diesel Engine | ZH4100D (OEM Ricardo Diesel Engine) |
| Rated Output/Max output(KW) | 30KW(41HP)/33KW(44HP) |
| Rated Speed (r/min) | 1500 |
| Starting Method | 12V DC Electric motor |
| Cooling Method | closed water cooling |
| Governing Method | Mechanic governing |
| Intake Method | natural aspiration |
| Cylinders | 4 |
| Bore/Stroke | 100/115mm |
| Type | closed water cooling,in-line,4 stroke,humid liner,direct injection |
| Model Diesel Water Pump | IS125-100-400 |
| Type | sigle grade,sigle suction,centrifugal pump |
| Outflow/head lift | 120m³/h, head lift:48.5m |
| Suction lift | 7m |
| Shaft Power | 23.6KW |
| Inlet diameter | 125mm(5inch) |
| Outlet diameter | 100mm(4inch) |
| Casing material | cast iron |
| Shaft material | cast iron |
| Impeller material | cast iron |
| Sealing method | stuffing sealing |
| Display/Control System | Display oil pressure,charging current,water temperature,oil temperature. |
| Standard Equipments | Diesel engine: 1set |
| Water pump: 1set | |
| Bottom valve with flange and seal gasket:1set,bolt&screw:8 sets | |
| Inlet flange(6") with seal gasket:1set,bolt&screw:8 sets | |
| Outlet flange(5") with seal gasket:1set,bolt&screw:8 sets | |
| Outlet ball valve with short steel pipe for priming water:1set | |
| Oil filter:1set | |
| Fuel filter:1set | |
| Air filter:1set | |
| Display meters: 4set | |
| Flexible shaft joint: 1pc | |
| Common base with fuel tank(8hr working):1set | |
| Battery:DC 12V*1 | |
| Accessary spare parts | |
| Technic file: 1set |
