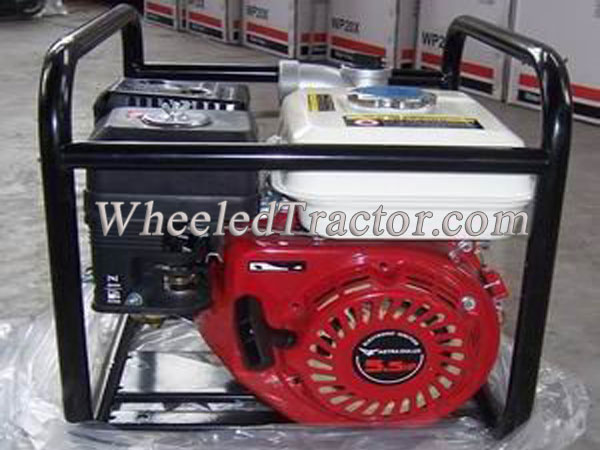

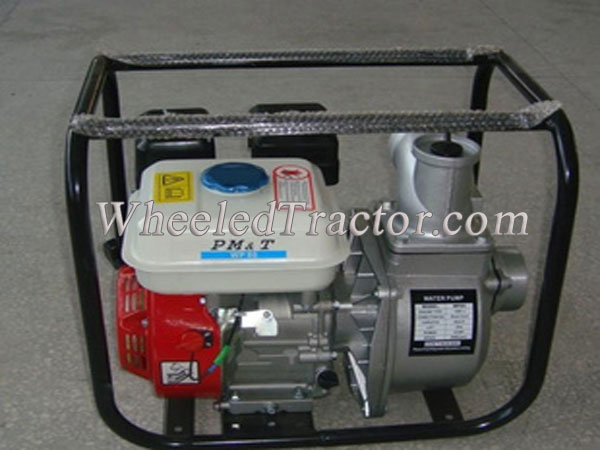

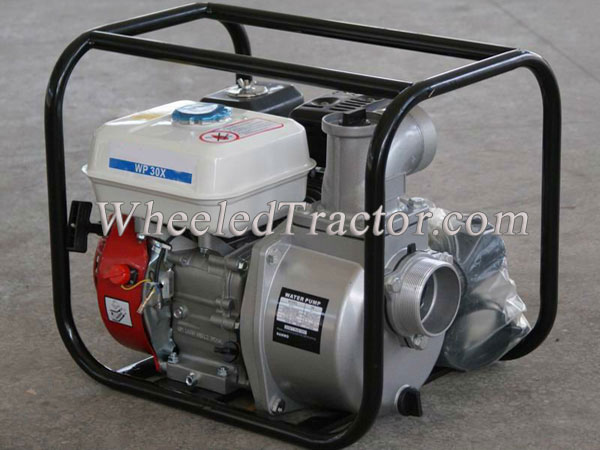

Gasoline Engine Water Pump
Gasoline trash water pump gasoline engine driven hydraulic pump electric gasoline pump,for farming for swimming pool 5.5HP 168F engine
online service
| PUMP | |
| Inlet/Outlet (mm/inch) | 80/3 |
| Total Head (m) | 26 |
| Suction Head (m) | 8 |
| Max Capacity (L/min) | 1000 |
| ENGINE | |
| Model | LG160 |
| Type |
Air-Cooled, 4-stroke, OHV250 Inclined single cylinder |
| Bore×Stroke (mm) | 68×45 |
| Displacement (cm3) | 163 |
| Compression Ratio | 8.5:1 |
| Max. Power Output (hp/rpm) | 5.5/3600 |
| Rated Power output (hp/rpm) | 4.8/3600 |
| Max. Torque | 10.8/2500 |
| Ignition System | Non-contact transistorized ignition (T.C.I) |
| Starting System | Recoil Air Cleaner Semi-dry type. double |
| STRUCTURE | |
| Dimension(L×W×H) (mm) | 525X410X480 |
| Net Weight (kg) | 30 |
| Fuel Tank Capacity (L) | 3.63.6 |
| Fuel Consumption (g/kw.h) | 230 |
| Oil Capacity (L) | 0.6 |
