Diesel Engine Irrigation Pump Set
diesel engine irrigation pump set, Farm irrigation,fire fighting,industrial water supply system,irrigation,fire fighting,sewage project,industrial etc.
online service
Diesel water pump set
Usage: Farm irrigation,fire fighting,industrial water supply system and sewage project etc.
Treated Water: Fresh water,River water
Outflow:30-5000m³/h
Head Lift:7-342m
Example one--30DPR01 (Q=240m3/h,H=29m)
Diesel engine parameters:
1)Model:CUMMINS ,PERKINS ,DEUTZ ,RICARDO ENGINE
2)Rated output/Max output(KW):10KW-800KW
3)Rated speed(r/min):1500
4)Starting method: Electric motor 24V DC
5)Cooling method: Closed water cooling
6)Governing method: Mechanical/Electronic governing(Optional)
7)Intake method: Natural ,Turbocharged ,Turbocharged Intercooled
8)Cylinders:2,3,4,6
9)Bore/Stroke:105/125mm,102/120mm,114/135mm,140/152mm,159/159mm
10)Type: in line,4 stroke, humid liner, direct injection

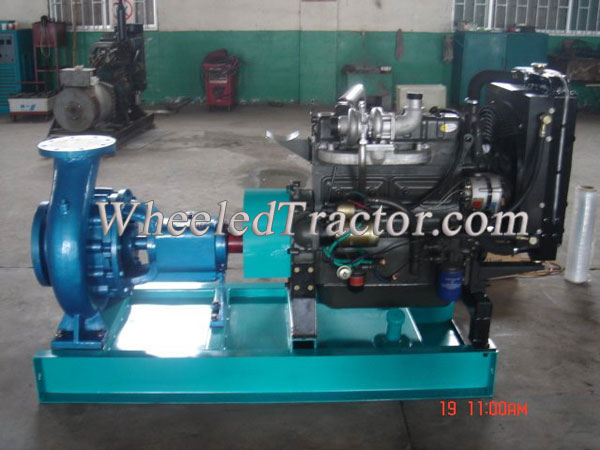

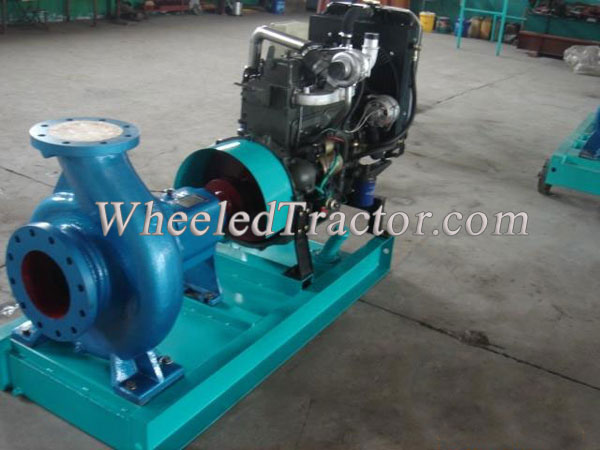

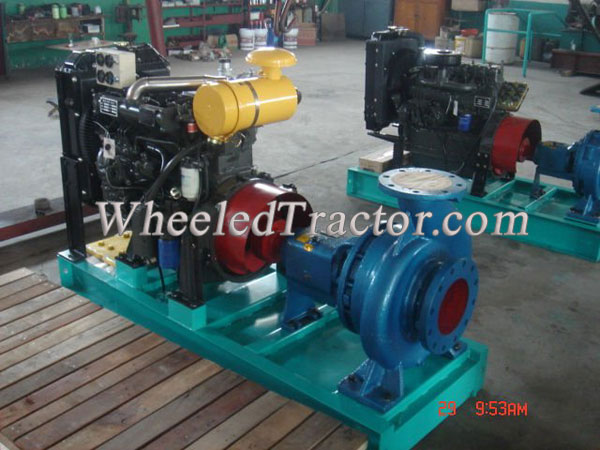

diesel engine reference picture:
42GPK01-3
Water pump parameters:
1)Model:IS150-125-315
2)Type: Single grade, single suction,centrifugal
3)Outflow:240m3/h
4)Head:29m
5)Shaft power:23.7KW
6)Inlet diameter:150mm(6inch)
7)Outlet diameter:125mm(5inch)
8)Casing material: cast iron
9)Shaft material: cast iron
10)Impeller material:cast iron
11)Sealing method: Stuffing sealing/Mechanical sealing(Optional)
Control system (OPTIONAL):
1) ATS/AMF function
2)Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc
3)Display functions with warning ,start and stop
Standard equipment:
1)Diesel engine: 1set
2)Water pump: 1set
3)Control panel: 1set
4)Flexible shaft joint: 1pc
5)Common base with 8hrs fuel tank:1set
6)Accessory spare parts 1set
7)Technical file: 1set
8)With affiliated sensors and sensor wires
9)Inlet/outlet flange,bolt&screws,bottom valve and filters (OPTIONAL)
Usage: Farm irrigation,fire fighting,industrial water supply system and sewage project etc.
Treated Water: Fresh water,River water
Outflow:30-5000m³/h
Head Lift:7-342m
Example one--30DPR01 (Q=240m3/h,H=29m)
Diesel engine parameters:
1)Model:CUMMINS ,PERKINS ,DEUTZ ,RICARDO ENGINE
2)Rated output/Max output(KW):10KW-800KW
3)Rated speed(r/min):1500
4)Starting method: Electric motor 24V DC
5)Cooling method: Closed water cooling
6)Governing method: Mechanical/Electronic governing(Optional)
7)Intake method: Natural ,Turbocharged ,Turbocharged Intercooled
8)Cylinders:2,3,4,6
9)Bore/Stroke:105/125mm,102/120mm,114/135mm,140/152mm,159/159mm
10)Type: in line,4 stroke, humid liner, direct injection
diesel engine reference picture:
42GPK01-3
Water pump parameters:
1)Model:IS150-125-315
2)Type: Single grade, single suction,centrifugal
3)Outflow:240m3/h
4)Head:29m
5)Shaft power:23.7KW
6)Inlet diameter:150mm(6inch)
7)Outlet diameter:125mm(5inch)
8)Casing material: cast iron
9)Shaft material: cast iron
10)Impeller material:cast iron
11)Sealing method: Stuffing sealing/Mechanical sealing(Optional)
Control system (OPTIONAL):
1) ATS/AMF function
2)Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc
3)Display functions with warning ,start and stop
Standard equipment:
1)Diesel engine: 1set
2)Water pump: 1set
3)Control panel: 1set
4)Flexible shaft joint: 1pc
5)Common base with 8hrs fuel tank:1set
6)Accessory spare parts 1set
7)Technical file: 1set
8)With affiliated sensors and sensor wires
9)Inlet/outlet flange,bolt&screws,bottom valve and filters (OPTIONAL)
