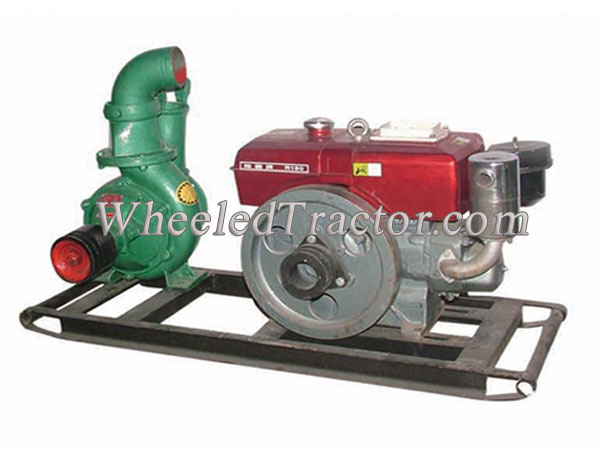

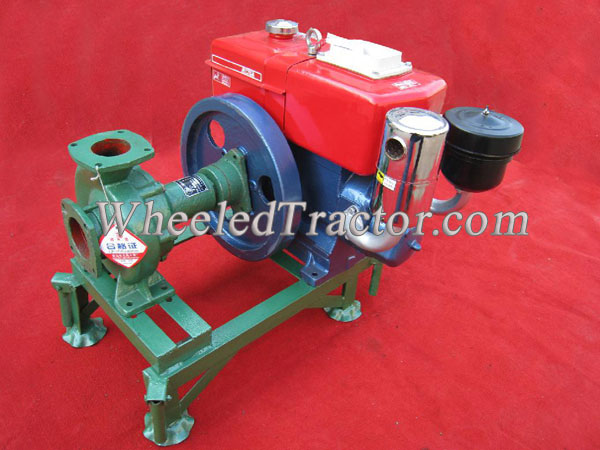

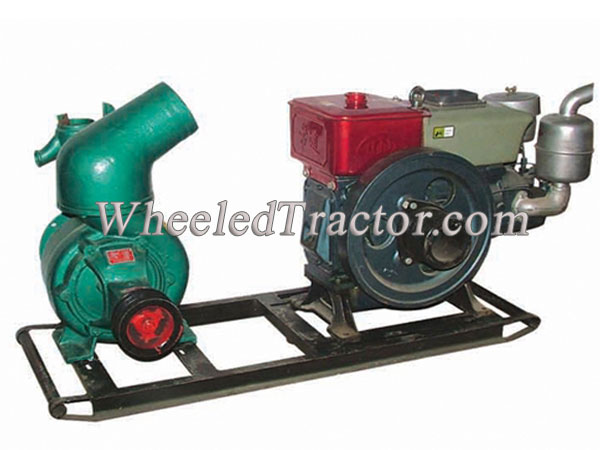

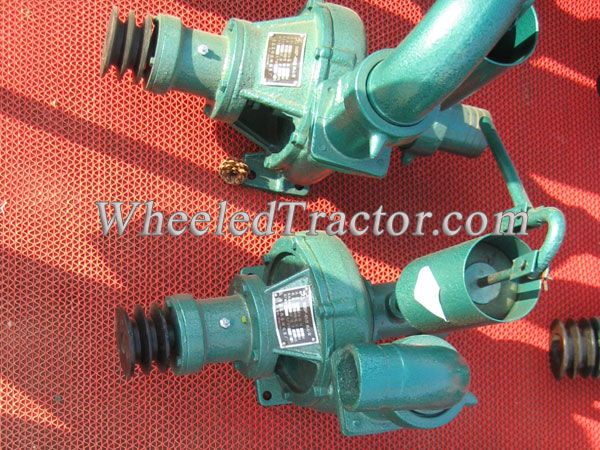

Diesel Water Pump
Diesel Water Pump, 2''(50mm), 3''(80mm), 4''(100mm), 6''(150mm), 8''(200mm),10''(250mm), 12''(300mm),apply irrigation,sewage project
online service
Diesel Water Pump
Product Introduction
self priming non-clog centrifugal sewage pump is a new generation product base on the latest technology and craftwork. It is well-known as top self-priming centrifugal pump.
Application
1. Municipal Project, Sewage Project, Instruction Project
2. Transportation of the sewage of uptown
3. Sewage transportation in Hospital, hotel and so on
4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering.
5. Transportation of the factory and contaminated water
Specification
Main character
1. beautiful shape and find structure, reliable performance
2. with strong capacity of self priming, no need to equip with flap valve
3. non-clog , and with powerful capacity of passing big solid
4. The unique lubrication oil mechanical seal cavity makes the performance more reliable
5. The hole can make sure that stronger sewage can be cleaned quickly when pump is jammed.
6. Special check valve structure can make the pump quickly next time.
7. When pump, the pump can pump with gas and liquid at the same time.
8. Low rotary speed, reliable operation, long useful life, easily maintenance.
9. Advanced pressure protector make pump operate safety.
10. No need for add-on vacuum pumps or compressors, which add to owner maintenance and increase the potential for costly repairs.
Operation condition
1. The temperature of medium no more than 80°C,the density of medium is 1.0~1.3*103Kg/m3,PH is within5~9
2. Max diameter of solid should be less than76.2mm
3. Max suction lifts no more than 3 inches or 7m
Product Introduction
self priming non-clog centrifugal sewage pump is a new generation product base on the latest technology and craftwork. It is well-known as top self-priming centrifugal pump.
Application
1. Municipal Project, Sewage Project, Instruction Project
2. Transportation of the sewage of uptown
3. Sewage transportation in Hospital, hotel and so on
4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering.
5. Transportation of the factory and contaminated water
Specification
| Inlet/Outlet | 2''(50mm), 3''(80mm), 4''(100mm), 6''(150mm), 8''(200mm),10''(250mm), 12''(300mm) |
| Impeller Diameter | 158.74mm-457.2mm |
| Rotary Speed | 550RPM-2150 RPM |
| Flow Rates | 8m3/h-1275m3/h 20GPM-5500GPM |
| Head | 6m-63m |
| Horsepower | 1HP-125HP |
| N.W | 92KG-998KG |
| G.W | 114KG-1066KG |
| Solid Passing | 20.63mm-76.2mm |
| Material | cast iron, ductile iron, stainless steel,CD4MCU,aluminum,bronze |
| Diesel Driving | Water cooled or air cooled |
| Method of Connection | Self-priming pumps are available as basic units or may be flexcoupled,V-belt driven or engine mounted. |
| Drive Variation | Cummins, Deutz, Ricardo, Perkins or Chinese Diesel, Electric Motor |
| Skid Mounted on Trailer | 2 wheels or 4 wheels Trailer |
| Package | Exporting plywood case |
| Certificate | CE,ISO9001-2008 |
Main character
1. beautiful shape and find structure, reliable performance
2. with strong capacity of self priming, no need to equip with flap valve
3. non-clog , and with powerful capacity of passing big solid
4. The unique lubrication oil mechanical seal cavity makes the performance more reliable
5. The hole can make sure that stronger sewage can be cleaned quickly when pump is jammed.
6. Special check valve structure can make the pump quickly next time.
7. When pump, the pump can pump with gas and liquid at the same time.
8. Low rotary speed, reliable operation, long useful life, easily maintenance.
9. Advanced pressure protector make pump operate safety.
10. No need for add-on vacuum pumps or compressors, which add to owner maintenance and increase the potential for costly repairs.
Operation condition
1. The temperature of medium no more than 80°C,the density of medium is 1.0~1.3*103Kg/m3,PH is within5~9
2. Max diameter of solid should be less than76.2mm
3. Max suction lifts no more than 3 inches or 7m
