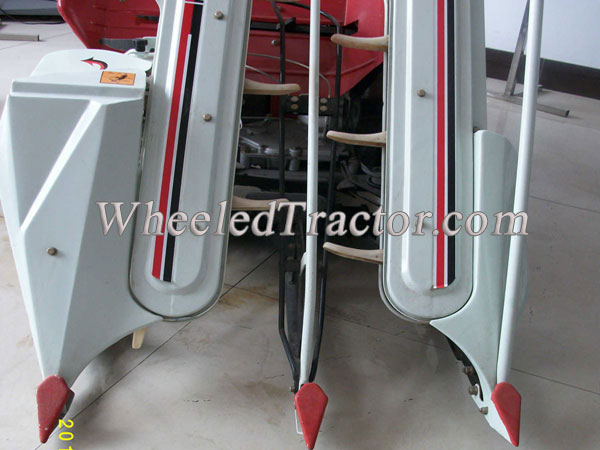

Mini Reaper Binder
Reaper binder is mainly used to harvest and bind low stem crops such as wheat, rice, grass, barely, oats, reed and straw, etc. The machine has different structure and working rows to meet different requirements of customers.
online service
|
Model |
4KUN-50 |
|
Overall dimensions (L*W*H) |
2090*810*1000mm |
|
Net weight |
240kg |
|
Reaping width |
50cm |
|
Reaping type |
Reciprocating |
|
Platform |
Vertical |
|

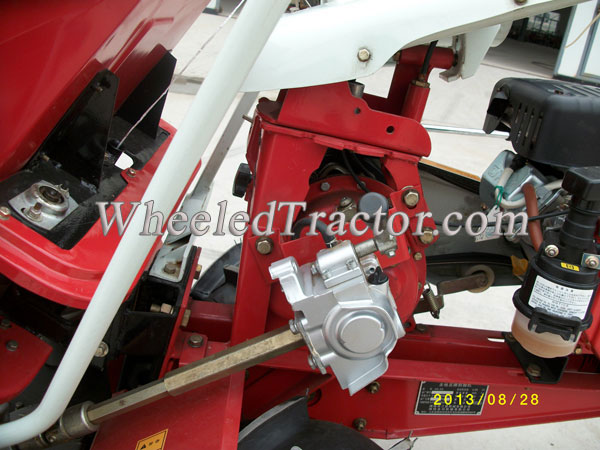

Transmission type |
Belt and transmission shaft |
|
Type of binding rope |
Plastic rope |
|
Binding type |
Automatic mechanical type |
|
Grain lifting type |
Chain wheel |
|
Binding rate |
≥95% |
|
Stubble height |
≤100mm |
|
Productivity |
0.1-0.2hm²/h. |
|
Loss rate |
≤1% |
|

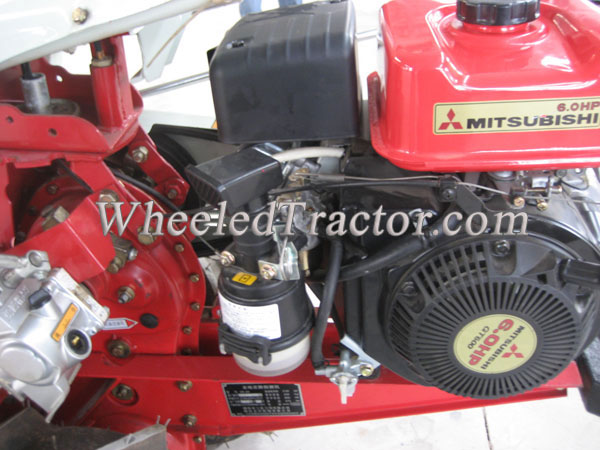

Engine output |
3-4.05kW |
|
Engine fuel consumption |
≤8kg/ hm² |
|
Function |
Reap and bind of the paddy or wheat |
