Tractor Backhoe with PTO Hydraulic Pump
Tractor Backhoe Attachment with PTO driven hydraulic system including pump with gearbox, tank and all hoses,PTO connection: F35 Round with Rectangle Spline - 6 teeth.
online service

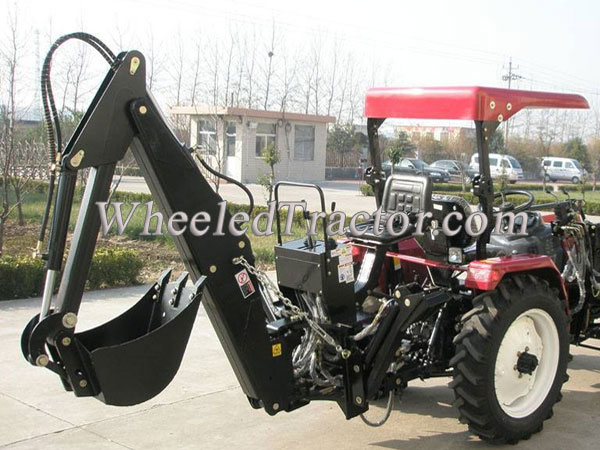

Tractor Backhoe Attachment with PTO hydraulic pump - attach to standard 3PL
Tractor Backhoe Attachment with PTO driven hydraulic system including pump with gearbox, tank and all hoses.
Note: There is no tractor included in this auction, only the Backhoe attachment that connects to the rear 3 point linkage of a tractor.
(In Stock Now)
(See my other auctions for a matching tractor - unbeatable value)

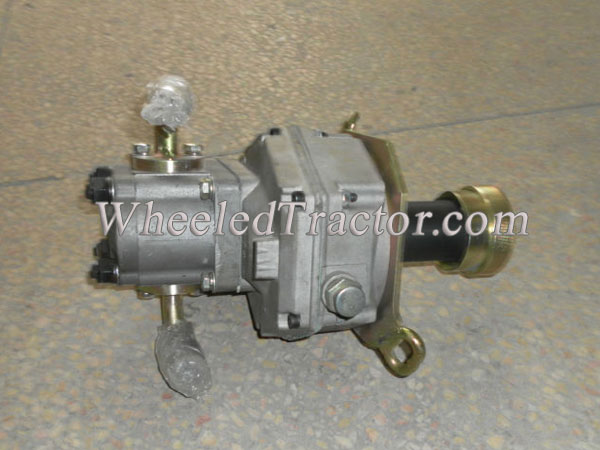

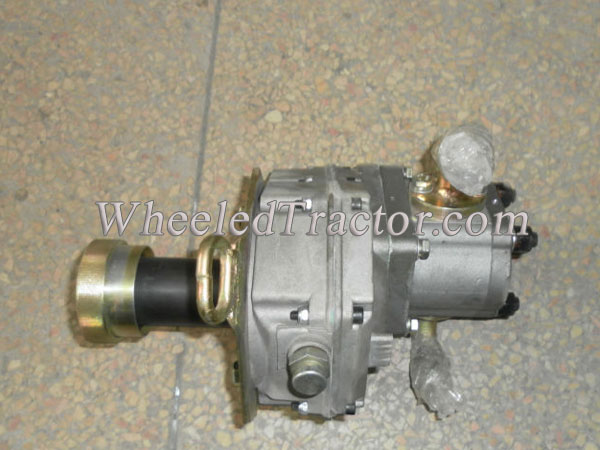

Complete with PTO driven hydraulic pump and self contained hydraulic system.
Attaches to 3PL at rear of tractor - Quick release with pins

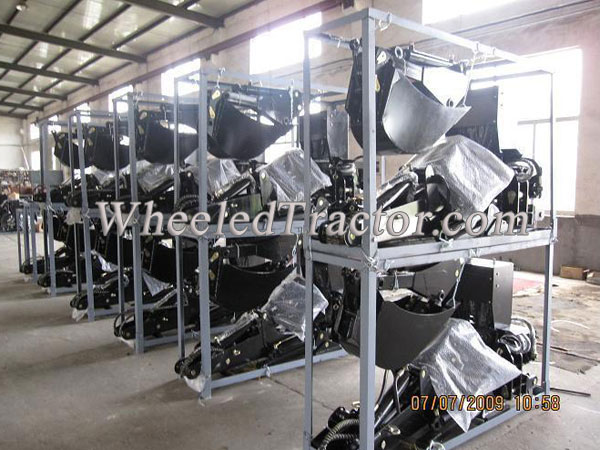

Supplied attached to a metal frame for shipping and requires some minor assembly.
The hydraulic oil tank will need approximately 25 litres of hydraulic oil.
Note: Each shipment may vary slightly in design.
Warranty:
· 6 month parts only warranty
Other attachments available at additional cost:
· Fork attachment for Front End Loader
· Teeth for front bucket
· 4WD Tractors
(Other attachments available on request to order)
Tractor Backhoe Attachment with PTO driven hydraulic system including pump with gearbox, tank and all hoses.
Note: There is no tractor included in this auction, only the Backhoe attachment that connects to the rear 3 point linkage of a tractor.
(In Stock Now)
(See my other auctions for a matching tractor - unbeatable value)
Complete with PTO driven hydraulic pump and self contained hydraulic system.
Attaches to 3PL at rear of tractor - Quick release with pins
Supplied attached to a metal frame for shipping and requires some minor assembly.
The hydraulic oil tank will need approximately 25 litres of hydraulic oil.
Note: Each shipment may vary slightly in design.
- Linkage: Cat-1 3PL

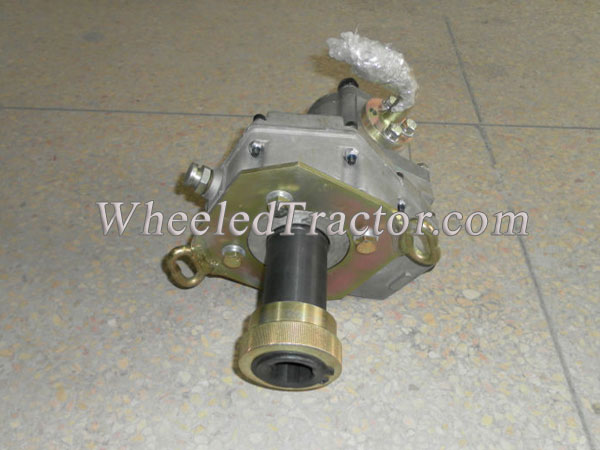

- PTO connection: F35 Round with Rectangle Spline - 6 teeth.
- Max digging depth: 1.7m
- Max digging depth - flat bottom: 1.6m
- Max unloading height: 1.7m
- Max digging height: 2.7m
- Max digging depth - flat bottom: 1.6m
- Max swing angle: 140 degrees
- Bucket rotation angle: 160 degrees
- Bucket capacity: 0.03m2 (trenching bucket attached)
- Weight: 450kg
Warranty:
· 6 month parts only warranty
Other attachments available at additional cost:
· Fork attachment for Front End Loader
· Teeth for front bucket
· 4WD Tractors
(Other attachments available on request to order)
