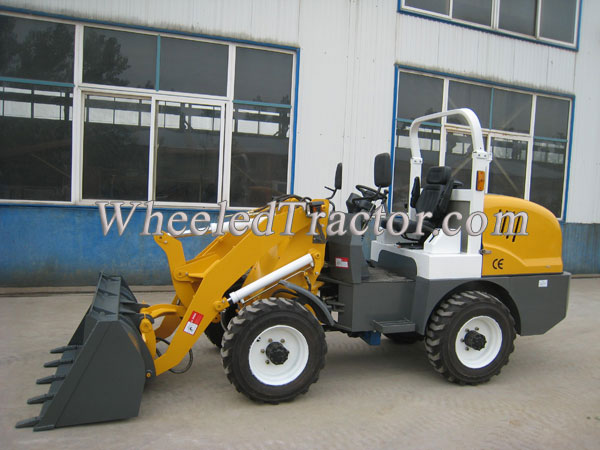

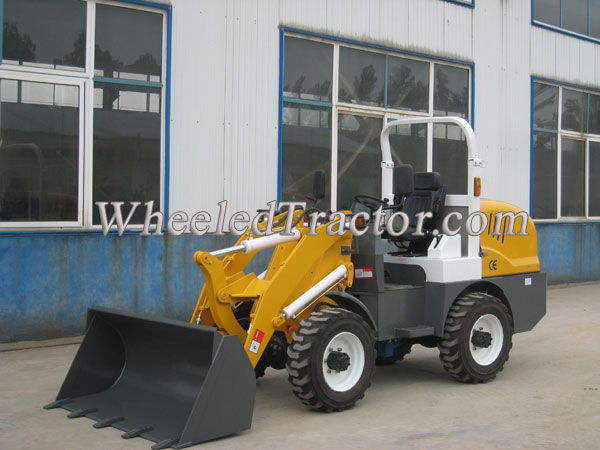

910 Wheel Loader
910 Wheel Loader,Small wheel loader ZL10F wheel loader with CE certification 910 Single Cylinder Engine China Made Mini Wheel Loader
online service
| ecification | overall weight(kg) | 2100 |
| L×W×H(mm) | 4700×1600×2580mm | |
| Rated bucket capacity(m3) | 0.4 | |
| Rated load(kg) | 1000 | |
| dump height (mm) | 2350 | |
| Dump distance | 800mm | |
| Wheelbase | 2100mm | |
| Tread | 1400/1405mm | |
| Total time | 11s | |
| Engine | Brand and modle | Changchai4L68,Changchai490,EuroIII |
| Type |
direct injection, horizontal, water-cooled four-stroke, single cylinder |
|
| Rated power(kw) | 37 | |
| Rated speed(r/min) | 2200 | |
| Working system | Distribution of work valve | DF15.2C |
| Working pump | CBF32 | |
| Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | 35±1° | |
| Min turning radius(mm) | 3400 | |
| Tire | Standard tire | 1200-16 |
