936 Wheel Loader
936 Wheel Loader,4WD Deutz 92KW engine 936 wheel loader,wheel loader: Cummins diesel engine, powerful motive force, reliable performance, high efficiency and economizing on fuel
online service

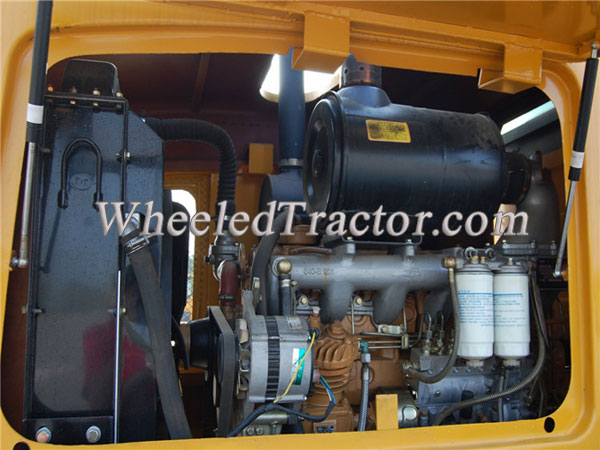

1. Equipped with Deutz Engine ,optional Yuchai 6108, Dongfeng Cummins
2. High quality self-made hydraulic gearbox and driving axle.
3. Choose best hydraulic components, pilot operation, easy and durable.
4. Strong and durable frame, have the automatic flat function in high place.
5. (Quick change )option attachment: wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc

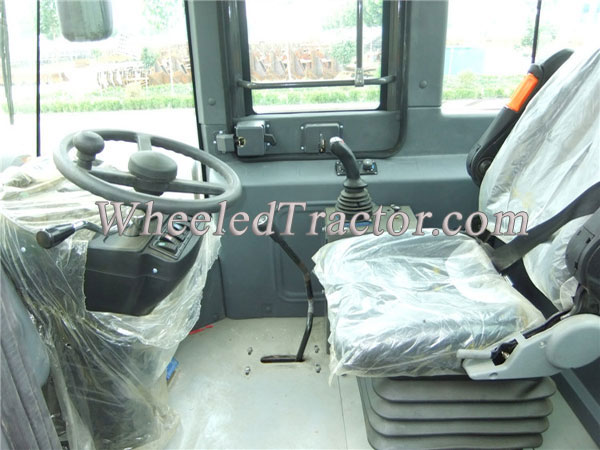

6. Luxurious cab, cab rollover, easy to keep and operate.
7. Changeable luxurious meter, air conditioner, back camera, more comfortable for driving.
8. high pressure and safer air assist disc brake braking system
9. according to clients request, customize higher dumping and longer arm products.
Model | 936L |

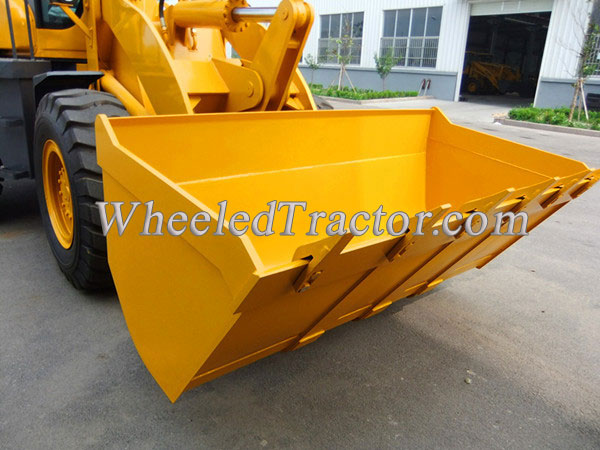

Bucket capacity | 1.8m³ |
Rated load | 3000 kg |
Wheel base | 2660 mm |
Wheel Tread | 1800 mm |
Min.ground clearance | 380mm |
Max. dumping height | 3200 mm |
dump distance | 980mm |
Total times | 9s |
Operation weight | 9800kg |
engine model | Weichai DEUTZ WP6G125E22 |
Rated power/ speed | 92kw/2400 rpm |
Overall dimension | |
(L*W*H) | 6890*2250*3070mm |
Tyre | 17.5-25 |
