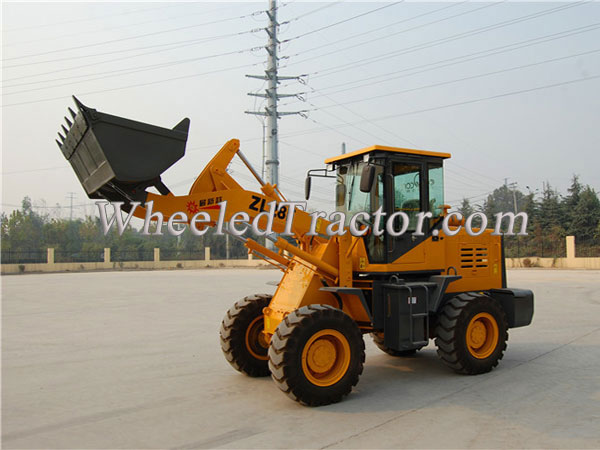

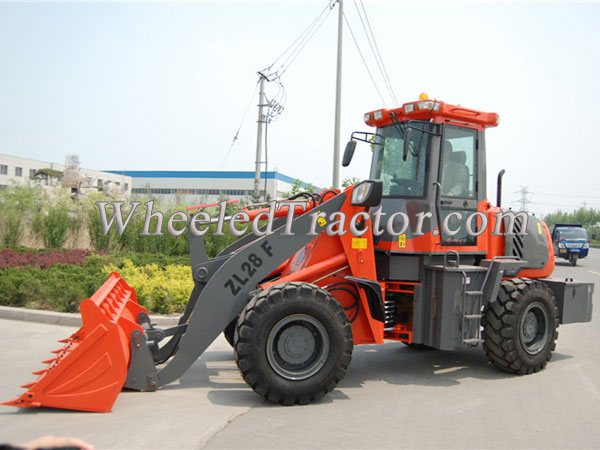

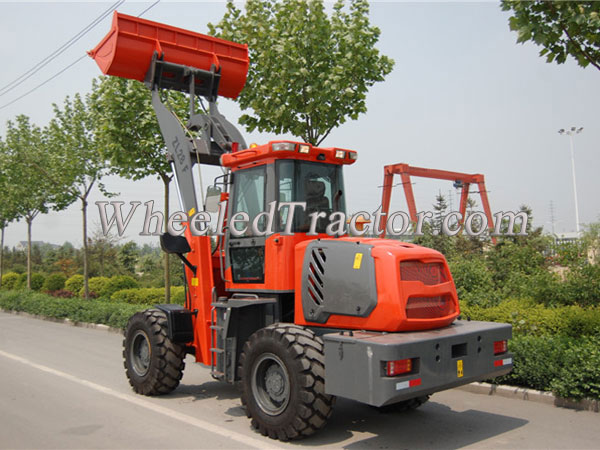

ZL28 Wheel Loader
ZL28 Wheel Loader, Using direct injection diesel engine as power, with easy startup and low oil consumption,Using special drive axle, with strong ability to overcome obstacle,Chassis uses hinged structure, with small turning radius and flexible turnin
online service
1. Using direct injection diesel engine as power, with easy startup and low oil consumption 2. Using special drive axle, with strong ability to overcome obstacle 3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space 4. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, et
| Item | ZL928 | |
| Engine | Model | Cummins 4BT3.9-C100 |
| Type | direct injection w/ water cooling | |
| Rated Power / Revolution(kw/rpm) | 74/2400 | |
| Max Torque / Revolution (N.m /rpm) | 330/1500 | |
| Working Range | Dumping Height(mm) | 3200 |
| Dumping Distance(mm) | 1084 | |
| Min Turning Radius (mm) | 4500 | |
| Min Ground Clearance(mm) | 320 | |
| Specification | Total Weight (kg) | 5500 |
| Loading Weight (kg) | 2000 | |
| Gradeability | 35° | |
| Max Breakout Force(KN) | 77 | |
| Lifting Time (s) | 5 | |
| Lay Down Time(s) | 4 | |
| Dumping Time(s) | 2 | |
| Min Traveling Speed(km/h) | 4 | |
| Max Traveling Speed (km/h) | 25 | |
| Wheelbase(mm) | 2470 | |
| Tread (mm) | 1380 | |
| Overall dimension(mm) | 6150*1970*3000 | |
| Steering | Pump type | BZZ5 -250 |
| Hydraulic | working pump type | single stage gear |
| working pressure (Mpa) | 20 | |
| Transmission | Transmission Type | Automatic hydraulic transmission |
| Forward | 2 gear | |
| Reverse | 2 gear | |
| Axles | main transmission | double reduction |
| Reduction ratio | 5.833 | |
| type of final reducer | single stage | |
| reducer ratio | 4.4 | |
| Brake | Front | Gas cap oil brake |
| Back | Gas cap oil brake | |
| Parking | air over oil caliper | |
| Tires | Model | 16/70 - 20 |
| Rim (inch) & Tire outer dia (mm) | 13 & 1075 | |
| Tire pressure (Mpa) | 0.35 - 0.45 | |
| Carry Capacity (max) (Kg) | 2925 / 5150 | |
| Tank Capacity | Fuel Tank (L) | 80 |
| Oil Tank (L) | 80 | |
| Control Panel | low fuel indicator, etc & hour meter | |
| Color | As your like and requirements | |
| Packing details | 2pcs/40”CTN | |
| Delivery time | 18 days when we receive the deposit | |
| Payment terms | T/T,30% DEPOSIT,THE BALANCE BEFORE SHIPMENT | |
