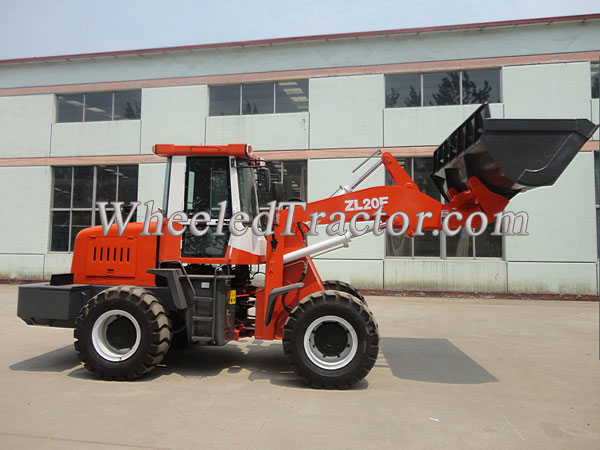

ZL20 Wheel Loader

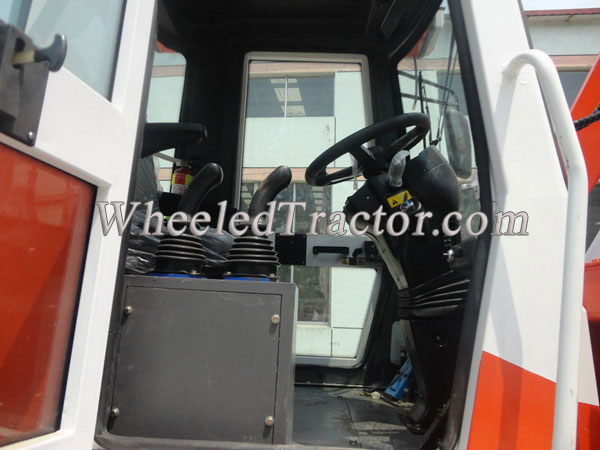

ZL20 wheel loader,cabin with broad view. Single(double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortabl
online service
model | ZL20 | |
Specification |
Bucket capacity | 1.1m3 |
Loading mass | 2000kg | |
Operating weight | 5000kg | |
The bucket automatically puts flat function | Yes | |
Max. Breakout Force | 70KN | |
Total time | 11s | |
Wheelbase | 2200mm | |
Tread | 1400mm | |
Dumping height | 3200mm | |
Dumping Distance | 950mm | |
Engine | Cummins 4BT3.9-C80 | |
Type | Direct injection, horizontal, water-cooled, four-stroke, four-cylinder | |
Rated power | 60KW | |
Rated Revolution | 2200r/min | |
Hydraulic System | Distribution of work valve | ZL20B |
Working pump | CBGj1045,CBGq1018 | |
Transmission System | Model of torque converter | YJ240 |
Transmission Type | Automatic | |
Type | single-phase single-stage radial-inward turbine triplex | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Steering System | Type | Articulated hydraulic steering |
Max. turning angle | 35° | |
Min turning radius | 5000mm | |
Brake System | Brake type | Oil brake(Vacuum booster) |
Tires | Standard tires | 20.5-16 |

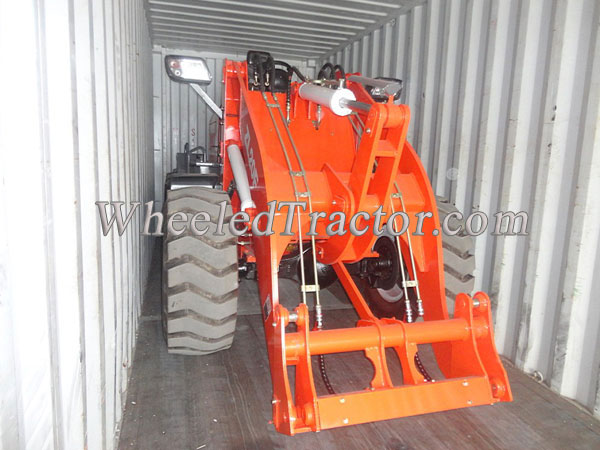

Packing Details | 2 pcs/40’ CTN | |
Delivery Time | 15 days upon the receipt of deposit | |
Payment Terms | T/T,30% DEPOSIT,THE BALANCE BEFORE SHIPMENT |
