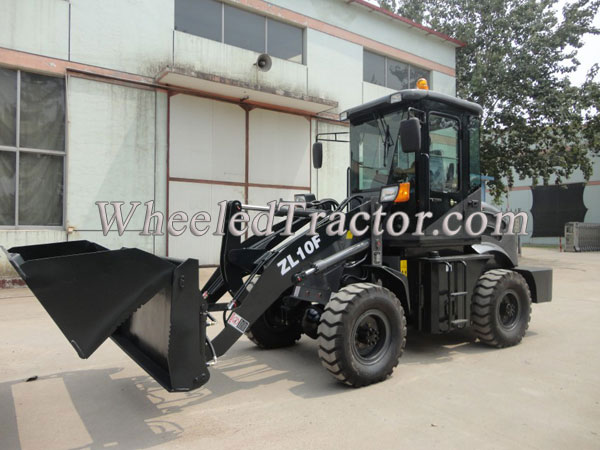

ZL10 Wheel Loader
ZL10 Wheel Loader, mini compact wheel loader 4WD with CE,1000kg mini wheel loader,Fully Hydraulic system
online service
| model | ZL-10 | |
|
Specification |
Bucket capacity | 0.4m3 |
| Loading mass | 1000kg | |
| Operating weight | 2500kg | |
| The bucket automatically puts flat function | Yes | |
| Max. Breakout Force | 21KN | |
| Total time | 11s | |
| Wheelbase | 1620mm | |
| Tread | 1160mm | |
| Dumping height | 2700mm | |
| Dumping Distance | 750mm | |
| Engine | Engine model | CHANGCHAI ZS1125GM |
| Type | Direct injection, horizontal, water-cooled, four-stroke, single-cylinder | |
| Rated power | 20KW,28Hp | |
| Rated Revolution | 2200r/min | |
| Working System | Distribution of work valve | ZL-15.2 |
| Working pump | CBFC40 | |
| Steering System | Type | Articulated hydraulic steering |
| Max. turning angle | 35° | |
| Min turning radius | 4500mm | |
| Transmission | Mechanical | |
| Brake | Oil brake(Vacuum booster) | |
| Tyre | 9.00-16 | |
| Packing Details | 1*20GP:1 set 1*40GP:3 sets | |
| Delivery time | 10 days upon the receipt of deposit | |
| Payment | T/T,30% DEPOSIT,THE BALANCE BEFORE SHIPMENT | |
