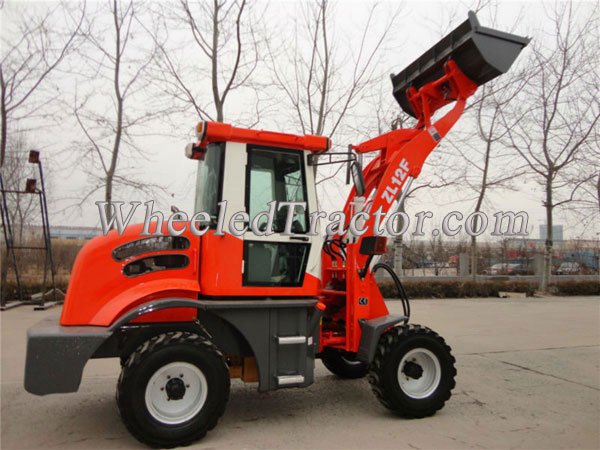

ZL12 Wheel Loader
Loader ZL12F,zl12 wheel loader with standard bucket,auger,CE,EPA,3 sets zl12 wheel loader in one 40H container
online service
Features of mini wheeled loader compact loader:
- Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the machine easy and comfortable to operate and have higher economical and production efficiency;
- Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
- Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, trafficability and more traction;

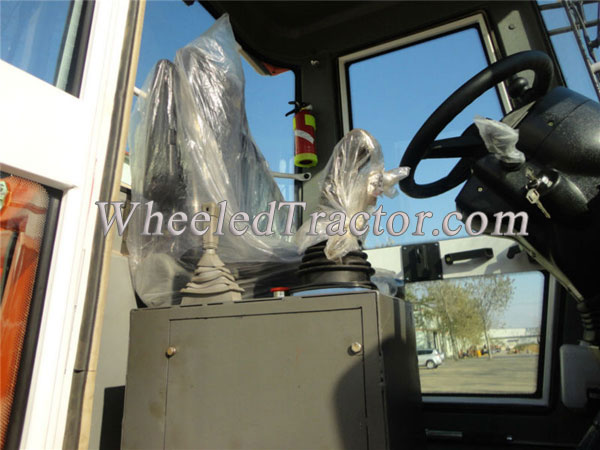

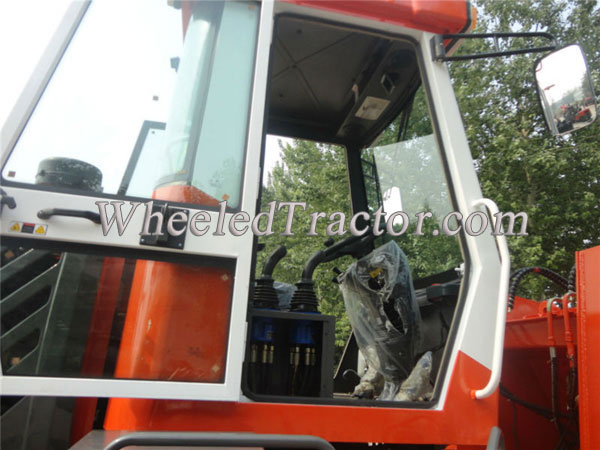

- Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view;
- Using 12-16.5 ultra-wide tyres to increase the stability of the whole machine and the service life of tyre;
- Brake system adopts single-line, hydraulic, expansion-shoe brake on 4 Wheels;
- This small wheel loader adopts ZL240 integrated torque converter, and the whole machine is fully hydraulic transmission;
- This compact wheel loader can be optionally equipped with pilot control system to make it easy to operate and increase the hydraulic performance of the whole machine;
- Power system adopts CHANGCHAI 4l68 direct injection, environmentally friendly, 4-cylinder engine to make this compact wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;

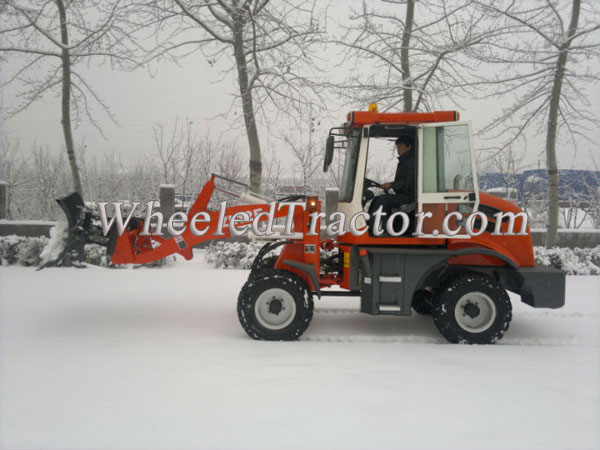

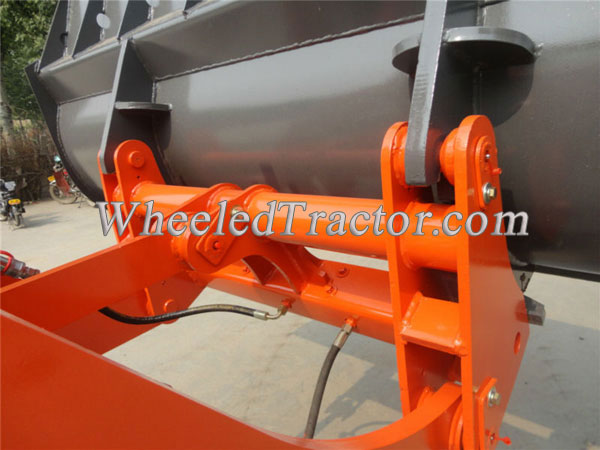

- This compact wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
| ZL12 Wheel Loader | |||
| Item | Parameter | ||
| Performance | 1 | Rated Load | 1200 kg |
| 2 | Total Weight | 2850 kg | |
| 3 | Rated Bucket Capacity | 0.5 m3 | |
| 4 | Max. Tractive Force | 30KN | |
| 5 | Max. Breakout Force | ≥ 30 KN | |
| 6 | Max. Gradeability | 38° | |
| 7 | Dumping Height | 2700 mm | |
| 8 | Dumping Reach | 750 mm | |
| 9 | Raising Time | ≤ 4.5 s | |
| 10 | Total Cycle Time | ≤ 8.5 s | |
| 11 | Overall Dimensions (L x W x H) | 4600*1500*2500 mm | |
| 12 | Min. Turning Radius | 3500 mm | |
| Engine | 13 | Model | CHANGCHAI 2102 |
| 14 | Type | Two-cylinder, Inline, Water-cooled, Four-stroke | |
| 15 | Rated Power | 27kw | |
| 16 | Rated Speed | 2200 rpm | |
| 17 | Min. Fuel Consumption Ratio | ≤ 215 g/kw·h | |
| Transmission | 18 | Mode | Mechanical Shift |
| 19 | Gear Shift | 3 Forward ,1 Reverse | |
| 20 | Max. Speed | 25 km/h | |
|
Axle |
21 | Model of Axle | 50 Axle |
| 22 | Wheel Tread | 1260 mm | |
| 23 | Wheel Base | 1720 mm | |
| Drive | 24 | Model | 4-way Drive |
| Hydraulic System | 25 | System Working Pressure | 16 Pa |
| 26 | Fuel Tank Capacity | 70 L | |
| Brake System | 27 | Service Brake | Oil Brake |
| Tire | 28 | Size | 9.00-16 |
