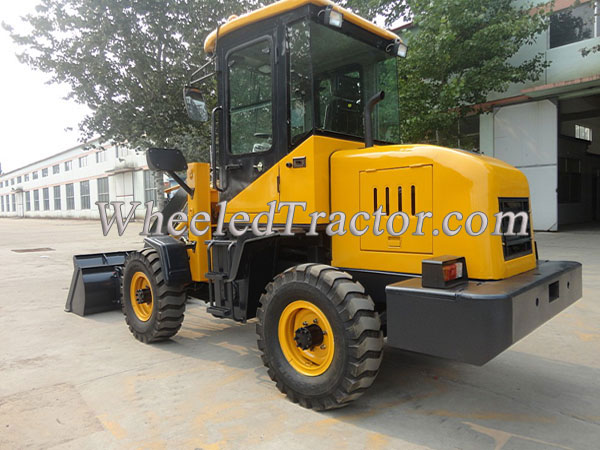

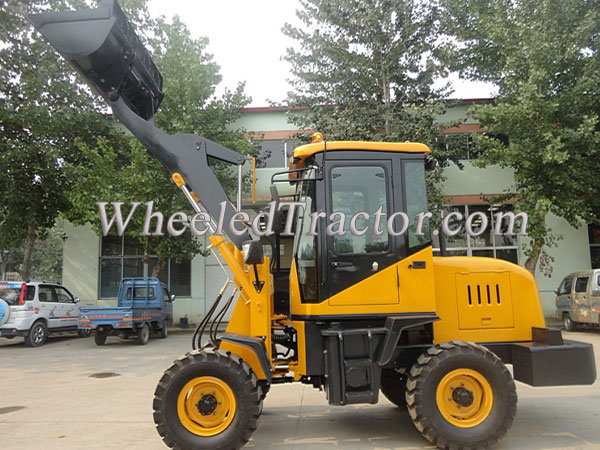

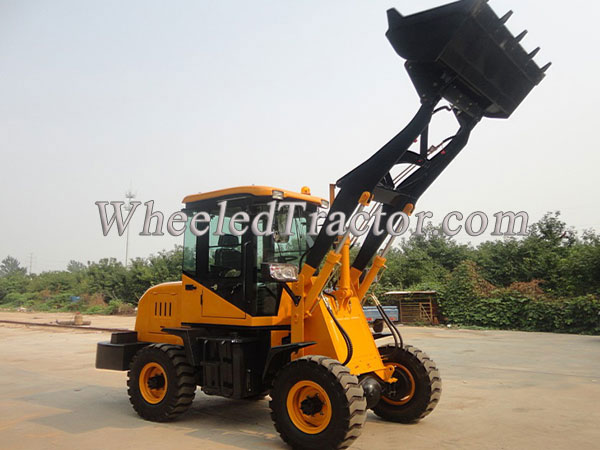

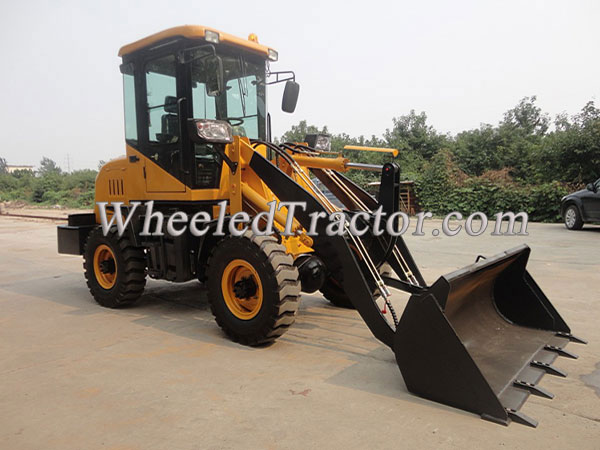

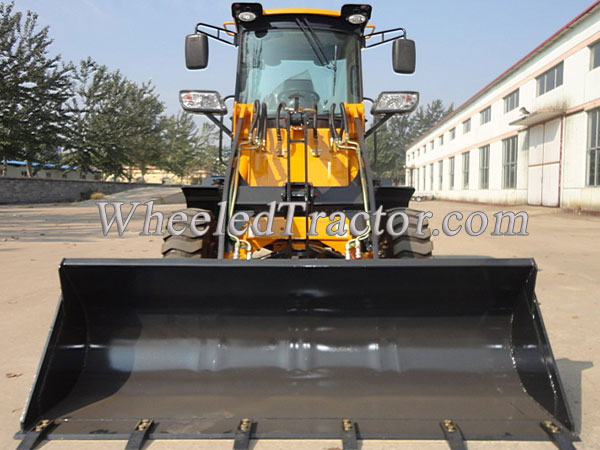

ZL08 Wheel Loader
ZL08 wheel loader with CE,Hydraulic transmission wheel loader,1.Engine:L28,Rated load:800Kg/0.8Ton,Front discharge
online service
Mini Wheel loader ZL08 main parameter
| Model | ZL08F | |
|
performance |
1.rated load | 800kg |
| 2.overall weight | 2300kg | |
| 3.rated bucked capacity | 0.4m3 | |
| 4.max tractive force | 30KN | |
| 5.max breakout force | ≥30KN | |
| 6.max grade ablity | 38° | |
| 7.max dump height | 2800mm | |
| 8.max dump reach | 850mm | |
| 9.overall dimension |
4500× 1400× 2200mm |
|
| 10.min turning radius | 3200mm | |
|
engine |
11.model | Changchai2102 |
| 12.type |
lnline water cooling fuel injection |
|
| 13.rated power |
25kw--2200r/min |
|
|
14. Min Fuel-consumption Ratio |
215g/kw.h | |
| transmisson | 15. Torque Converter | Mechanical shift |
| 16. Gear Shift | 3 Forward 1 Reverse | |
|
17.Maximum Speed |
25km/h | |
| Drive axles | 18.wheel base | 1850mm |
| 19. Wheel Tread | 1600mm | |
|
Hydraulic system |
20. System Working Pressure | 16Mpa |
|
21. Fuel Tank Capacity |
180L | |
|
Brake system |
22. Service Brake |
drum break |
|
23.Parking Brake |
Flexible shafte controlled disc brake |
|
|
Tyre |
24. Type Specification |
900-16 |
|
25. Front Tyre Pressure |
0.4Mpa | |
|
26. Rear Tyre Pressure |
0.35Mpa |
