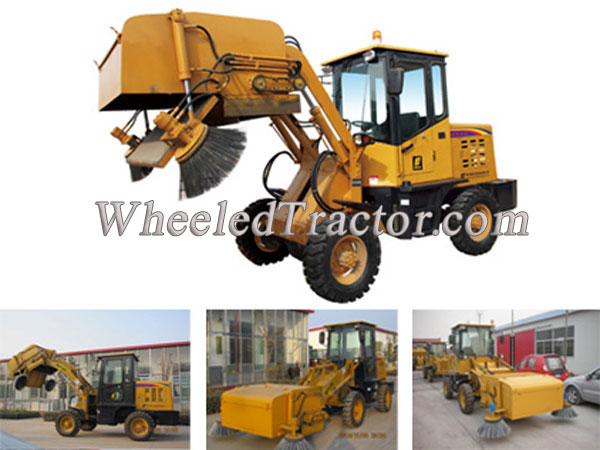

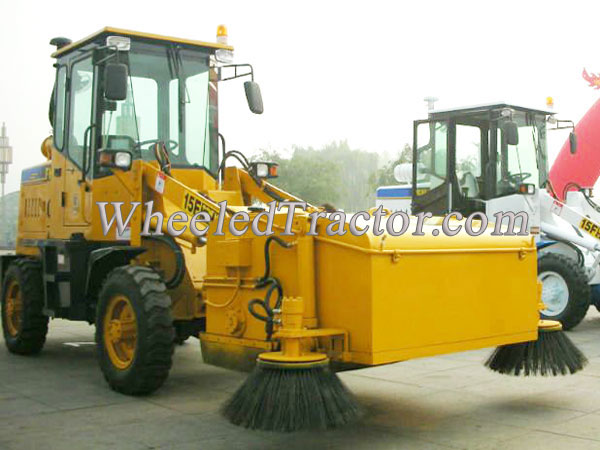

Wheel loader with Sweeper
Whee loader with Road Sweeper,Power system adopts XINCHAI 490 or CHANGCHAI 485 engine to make this compact wheel loader energy saving and environmentally friendly with high working efficiency
online service

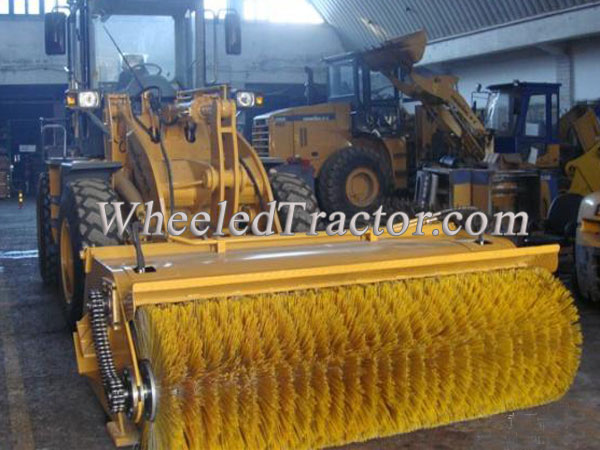

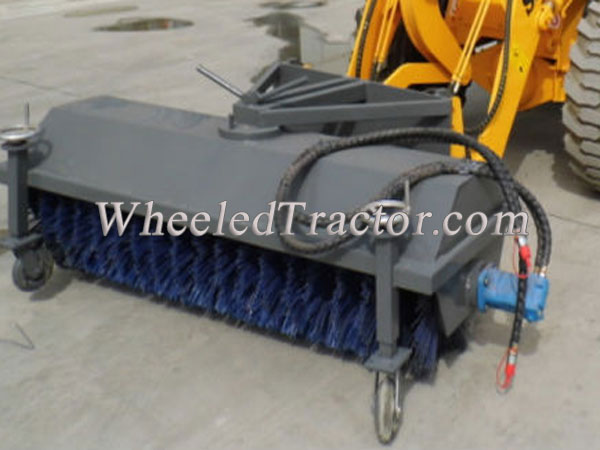

Angle Broom/Street Sweeper/Road Sweeper for wheel loader

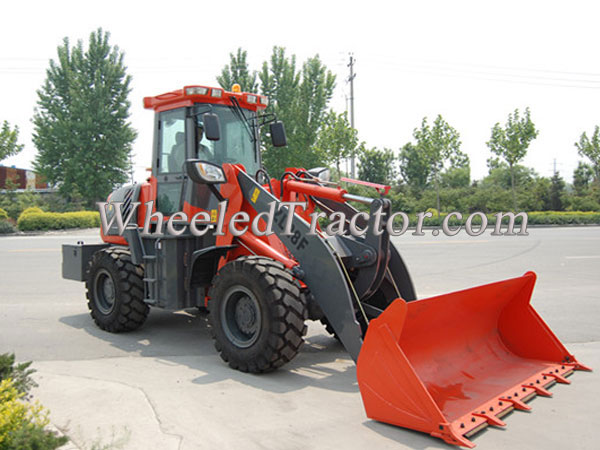

Specifications of ZL915 wheel loader
1, Overall Dimensions: 4850mmx1650mmx2727mm
2, Operating Weight: 4700kg
3, Max. Breakout Force: 45KN
4, Max. Gradeability: 30 degree
5, Engine Details:
(1) Model: Xinchai Euro 3 A498BT
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37KW
(4) Rated Speed: 2200 r/min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw. H
6, Transmission System:
(1) Type: Fixed-spindle Power shift
(2) Shift gear control oil pressure: 1.2~1.5MPa
(3) Rated input speed: 2500 (rpm)
7, Operating Specifications:
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4200mm
(3) Driving System: Hydraulic torque converter
8, Brake System:
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake: Hand operated
9, Bucket:
(1) Bucket Capacity: 0.7 m3
(2) Bucket width: 1700mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Rated Load: 1500kg
10, Tyre
(1) Model: 12-16.5 / 14-17.5
8.0 Wheelbase: 2000mm
9.0 Track: 1600mm.
Besides clearing snow, the versatile machinealso could operate with fork, breaker, auger, grapple, etc.
Specifications of ZL915 wheel loader
1, Overall Dimensions: 4850mmx1650mmx2727mm
2, Operating Weight: 4700kg
3, Max. Breakout Force: 45KN
4, Max. Gradeability: 30 degree
5, Engine Details:
(1) Model: Xinchai Euro 3 A498BT
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37KW
(4) Rated Speed: 2200 r/min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw. H
6, Transmission System:
(1) Type: Fixed-spindle Power shift
(2) Shift gear control oil pressure: 1.2~1.5MPa
(3) Rated input speed: 2500 (rpm)
7, Operating Specifications:
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4200mm
(3) Driving System: Hydraulic torque converter
8, Brake System:
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake: Hand operated
9, Bucket:
(1) Bucket Capacity: 0.7 m3
(2) Bucket width: 1700mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Rated Load: 1500kg
10, Tyre
(1) Model: 12-16.5 / 14-17.5
8.0 Wheelbase: 2000mm
9.0 Track: 1600mm.
Besides clearing snow, the versatile machinealso could operate with fork, breaker, auger, grapple, etc.
