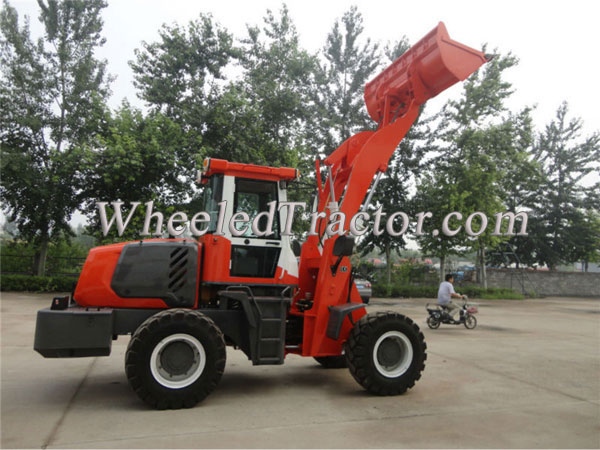

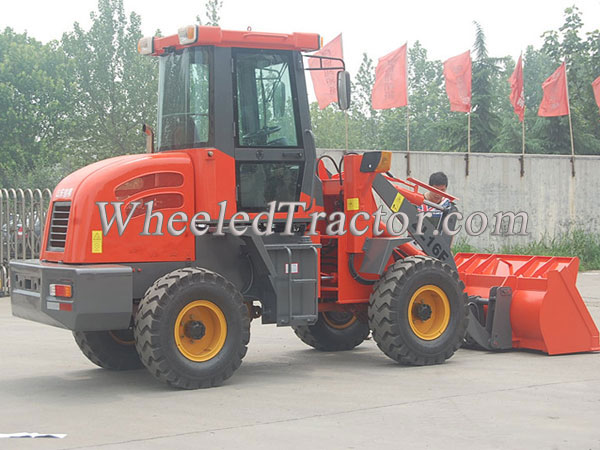

ZL16 Wheel Loader
ZL16 Wheel Loader Engine power 36.8 KW, Scoop standard volume 0,75 m³, Rated loader 1500 kg, Lifting time ≤ 4.5 s, Time of three motions ≤ 9 s, Running speed 0 ~16 km/h, Braking speed ≤ 3000 mm, Min. turning radius 4600 mm, Max.discharge height
online service
CE/EPA Approved 1200kg ZL16 Wheel Loader With Cummins Engine
| model | ZL16 | |
|
Specification |
Bucket capacity | 0.8m3 |
| Loading mass | 1600kg | |
| Operating weight | 4000kg | |
| The bucket automatically puts flat function | Yes | |
| Max. Breakout Force | 24KN | |
| Total time | 10s | |
| Wheelbase | 1950mm | |
| Tread | 1580mm | |
| Dumping height | 2700mm | |
| Dumping Distance | 950mm | |
| Engine | Engine | CHANGCHAI 4L68 |
| Type | Direct injection, horizontal, water-cooled, four-stroke, four-cylinder | |
| Rated power | 37KW | |
| Rated Revolution | 2200r/min | |
| Hydraulic System | Distribution of work valve | ZL20B |
| Working pump | CBGj1045,CBGq1018 | |
| Transmission System | Model of torque converter | YJ240 |
| Type | single-phase single-stage radial-inward turbine triplex | |
| Gearbox type | Fixed-spindle power shift | |
| Gear shift | 2 gears ahead,2 gear astern | |
| Steering System | Type | Articulated hydraulic steering |
| Max. turning angle | 35° | |
| Min turning radius | 4500mm | |
| Brake System | Brake type | Oil brake(Vacuum booster) |
| Tires | Standard tires | 9.00-16 |
| Packing Details | 3pcs/40’ CTN | |
| Delivery Time | 10 days upon the receipt of deposit | |
| Payment Terms | T/T,30% DEPOSIT,THE BALANCE BEFORE SHIPMENT | |
