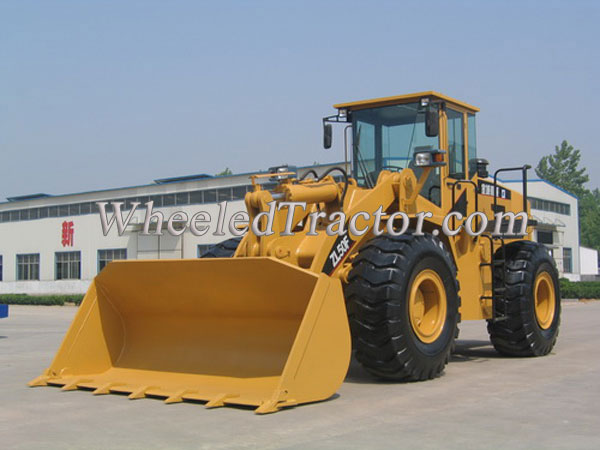

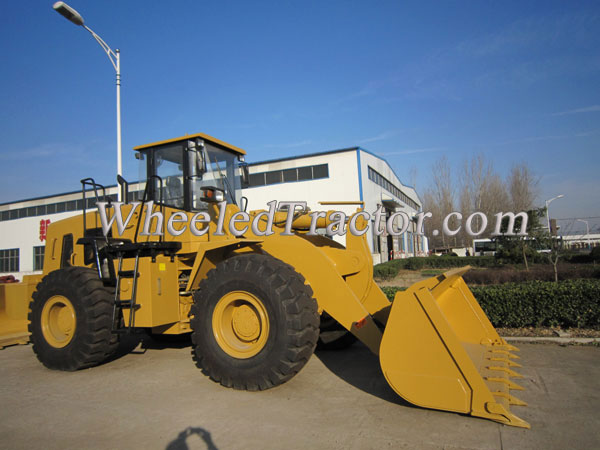

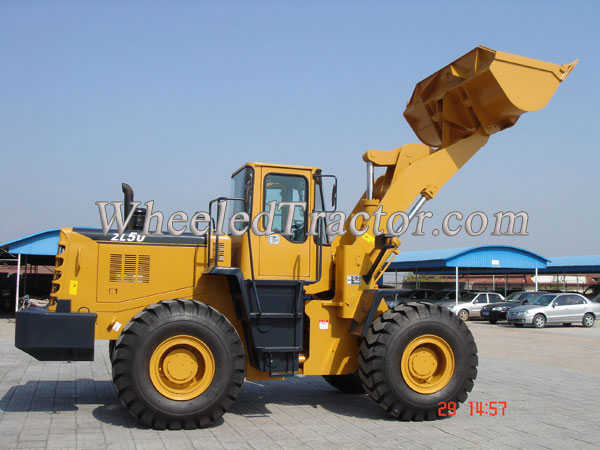

ZL50 Wheel Loader
ZL50 wheel loader Isuzu axle Eaton hydraulic motor,,Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity
online service
| Specification | ZL50F |
| Rated capacity | 3CBM |
| Rated weight | 5000Kg |
| Operating weight | 16000Kg |
| Performance of bucket being set level | Yes |
| Static tilting load at full steering position | 98KN |
| Max. breakout force | 172.6KN |
| Max. drawbar pull | 151.9KN |
| Max. grade ability | 30° |
| Total of three time:lifting,dumping, lowering | 11.3s |
| Max.dump height | 3098mm |
| Max.dump reach | 1198mm |
| Min. ground clearance | 450mm |
| Wheel base | 3200mm |
| Overall dimensions(length*width*height) | 7836*3010*3300mm |
| Engine | STEYR |
| Model | WD10G220E22 |
| Pattern | Inline,water cooled, dir.inject,fourstrokees |
| Cylinder-bore*stroke | 6-126*130 |
| Max.torsion | 779Nm |
| Rated power | 162KW |
| Min.fuel consuming rate | 214g/kw.h |
| Specified rotational speed | 2200r/min |
| Model of torque device | YJ375 |
| Pattern | 3-element,single stage |
| Number of great shift | 4 forward,4 revers |
| Max.travel speed | 38km/h |
| Main reducer type | Spiral bevel gear, moderationof first stage |
| Pattern of wheelside moderation | Single stage planetary |
| Type size | 23.5-25 |
| Front type pressure | 392KPa |
| Rear type pressure | 343KPa |
| Pattern | Articulated and hydraulic steering,load sensing meets |
| Steering angle(each direction) | 35°C±1 |
| Min.turning radius(outside of bucket) | 7268mm |
| Valve distributing working | DF32·2C |
| Working pumps | CBG3100 |
| Brake system | Air assisted oil type four wheel brake |
| Parking brake | Air cutting control inner expand hoof |
| Fuel capacity | 320L |
| Pressure of working hydraulic system | 160kfg/cm |
