Sugarcane Loader
Sugarcane Loader,Sugar Cane Loader,Loading sugar cane and wood. 2. Loading stone and sandy soil,More function, it is furnished with fork and bucket, it is easy to change so the machine can be used for loading sugar cane, log, rock, sands and so on
online service

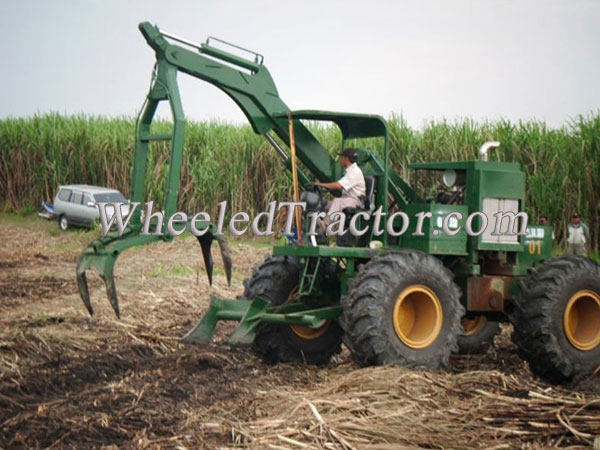

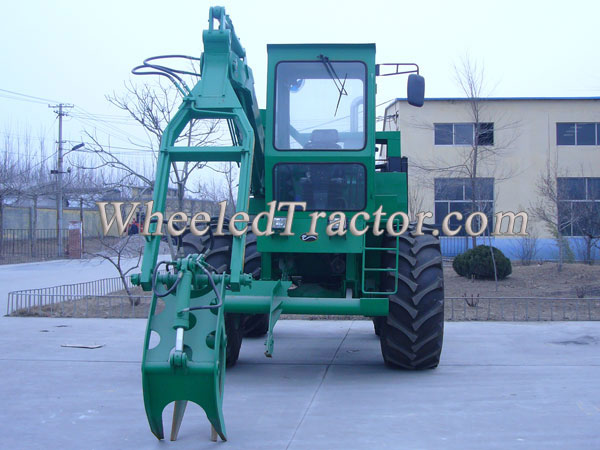

Sugar cane loader
Working table:water temperature|oil temperature,current|and work timing are all insight.

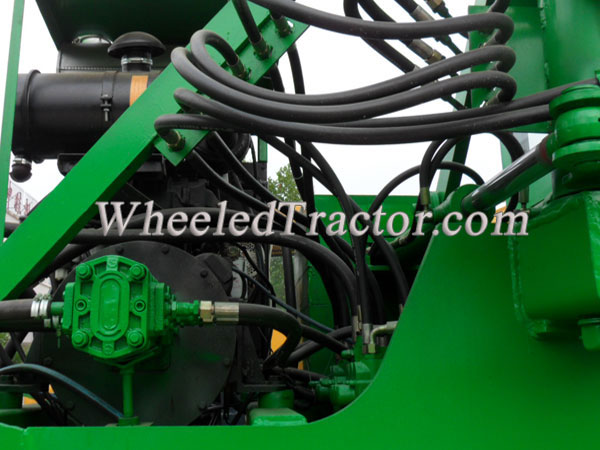

Famous brand hydraulic components
| Total weight | 7600kg |
| Grab and load weight | 1200-1300kg |
| Engine brand | Cummins |
| Model | 4BTA-C100 |
| Rated power | 74kw |
| Walking speed | 30KM/H |
| Swing angle of boom | 120 degree |
| Hydraulic systerm of pressure | 20mpa |
| Hydraulic system flux | 63/63ml/r |
| Max height of snatch | 5400mm |
| Max.dumping height | 5300mm |
| Max.grabbing radius | 5300mm |
| Open width of grasping | 1500mm |
| Overall dimension | 4900*2600*2500mm |
| Tyre type(foul-wheel drive) | 23.1---26 |
| Oil pump | JiNan Amory (most reliable quality in our country) |
| Distributor | Jinzhou |
| Oil tube | Shenyang XiangSi |
