18HP Tractor

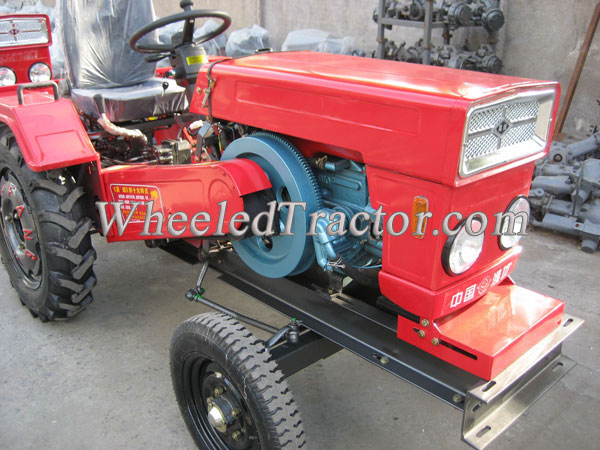

Belt Drive Tractor With Cab, Mini Tractor Cabin, small power 4-wheeled drive tractors connecting with engine by belt and have many good characteristics such as low price, compact structure, low fuel consumption and so on.
online service
Farm tractor with excellent quality, competitive price
1. The assembly technical parameters
| Model | 150 | 170 | 180 | 200 | 220 | |
|---|---|---|---|---|---|---|
| Drive type |
4×2WD |
|||||
|
Rated traction |
3350 | 3626 | 3724 | 3822 | 3950 | |
|
Dimensions （mm） |
L | 2670/2730 | 2670/2730/2810 | 2670/2730/2810 | 2775/2825/2895 | 2775/2825/2895 |
| W | 1160 | 1160 | 1160/1420/1520 | 1160/1420/1520 | 1160/1420/1520 | |
| H | 1680/1712 | 1680/1712/1724 | 1712/1724//1763/1776 | |||
|
Wheel base （mm） |
F | 900 | 900/960 | 900/960 | 900/1140/1240 | |
| R | 960 | 900/960 | 900/960 | 960/1200/1300 | ||
|
Track base (mm) |
1382 | 1382/1540 | ||||
|
Ground clearance (mm) |
245／295 | 245/295/340 | 295/340 | |||
| Steering radius(m) | 2.8／3.0（for wide track）±0.2 | |||||
| Structure weight(Kg) | 730/755 | 730／755/785 | 785/805/835/880/900/920 | |||
1. The assembly technical parameters
|
Model |
154 | 174 | 184 | 204 | 224 | |
|---|---|---|---|---|---|---|
| Drive type | 4×2WD | |||||
|
Rated traction |
3350 | 3626 | 3724 | 3822 | 3950 | |
|
Dimensions （mm） |
L | 2670/2730 |
2670/2730/2810 |
2670/2730/2810 | 2775/2825/2895 | 2775/2825/2895 |
| W | 1160 | 1160 | 1160/1420/1520 | 1160/1420/1520 | 1160/1420/1520 | |
| H | 1680/1712 | 1680/1712/1724 | 1712/1724//1763/1776 | |||
|
Wheel base （mm） |
F | 900 | 900/960 | 900/960 | 900/1140/1240 | |
| R | 960 | 900/960 | 900/960 | 960/1200/1300 | ||
|
Track base (mm) |
1382 | 1382/1540 | ||||
|
Ground clearance (mm) |
245／295 | 245/295/340 | 295/340 | |||
| Steering radius(m) | 2.8／3.0（for wide track）±0.2 |
|
||||
| Structure weight(Kg) | 750/ | 750~875 | 920~1100 | |||
