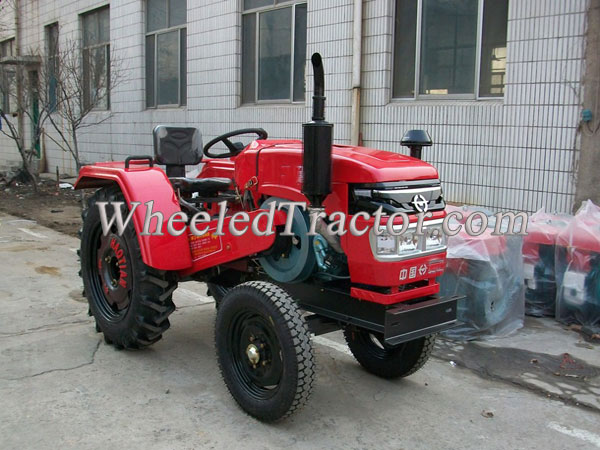

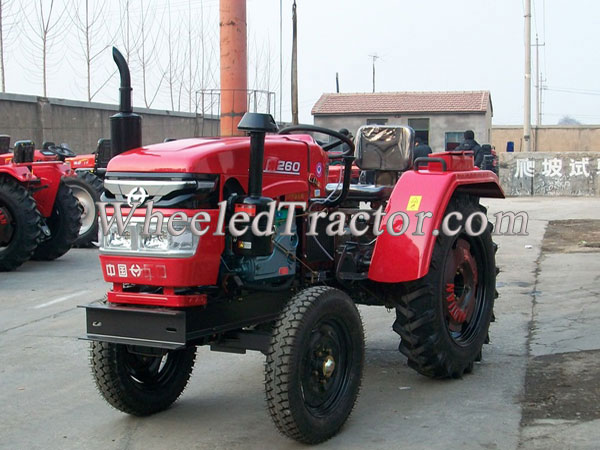

20HP Tractor

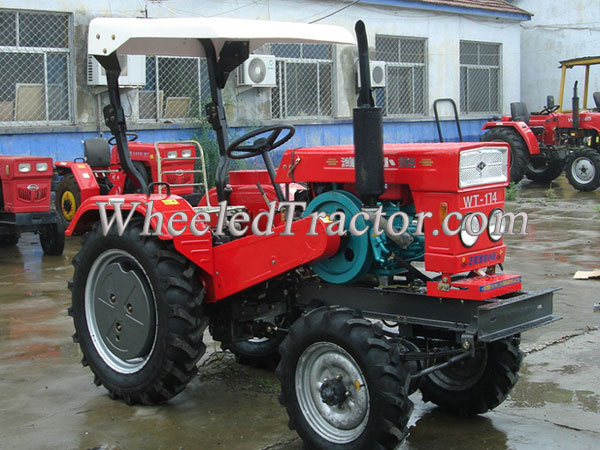

4×2WD 20HP Tractor,Tractor with Canopy Sunshade,20HP Tractor has the characteristics of high transmission efficiency, low tremble, high traction, high adaptability and easy star
online service
20HP Tractor has the characteristics of high transmission efficiency, low tremble, high traction, high adaptability and easy star
1. The assembly technical parameters
| Model | 150 | 170 | 180 | 200 | 220 | |
|---|---|---|---|---|---|---|
| Drive type |
4×2WD |
|||||
|
Rated traction |
3350 | 3626 | 3724 | 3822 | 3950 | |
|
Dimensions （mm） |
L | 2670/2730 | 2670/2730/2810 | 2670/2730/2810 | 2775/2825/2895 | 2775/2825/2895 |
| W | 1160 | 1160 | 1160/1420/1520 | 1160/1420/1520 | 1160/1420/1520 | |
| H | 1680/1712 | 1680/1712/1724 | 1712/1724//1763/1776 | |||
|
Wheel base （mm） |
F | 900 | 900/960 | 900/960 | 900/1140/1240 | |
| R | 960 | 900/960 | 900/960 | 960/1200/1300 | ||
|
Track base (mm) |
1382 | 1382/1540 | ||||
|
Ground clearance (mm) |
245／295 | 245/295/340 | 295/340 | |||
| Steering radius(m) | 2.8／3.0（for wide track）±0.2 | |||||
| Structure weight(Kg) | 730/755 | 730／755/785 | 785/805/835/880/900/920 | |||
1. The assembly technical parameters
|
Model |
154 | 174 | 184 | 204 | 224 | |
|---|---|---|---|---|---|---|
| Drive type | 4×2WD | |||||
|
Rated traction |
3350 | 3626 | 3724 | 3822 | 3950 | |
|
Dimensions （mm） |
L | 2670/2730 |
2670/2730/2810 |
2670/2730/2810 | 2775/2825/2895 | 2775/2825/2895 |
| W | 1160 | 1160 | 1160/1420/1520 | 1160/1420/1520 | 1160/1420/1520 | |
| H | 1680/1712 | 1680/1712/1724 | 1712/1724//1763/1776 | |||
|
Wheel base （mm） |
F | 900 | 900/960 | 900/960 | 900/1140/1240 | |
| R | 960 | 900/960 | 900/960 | 960/1200/1300 | ||
|
Track base (mm) |
1382 | 1382/1540 | ||||
|
Ground clearance (mm) |
245／295 | 245/295/340 | 295/340 | |||
| Steering radius(m) | 2.8／3.0（for wide track）±0.2 |
|
||||
| Structure weight(Kg) | 750/ | 750~875 | 920~1100 | |||
