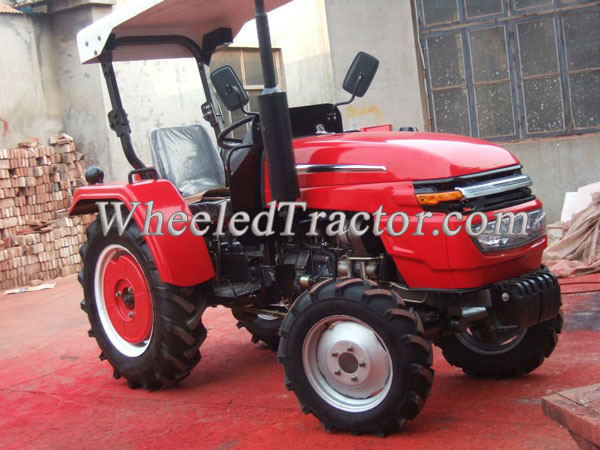

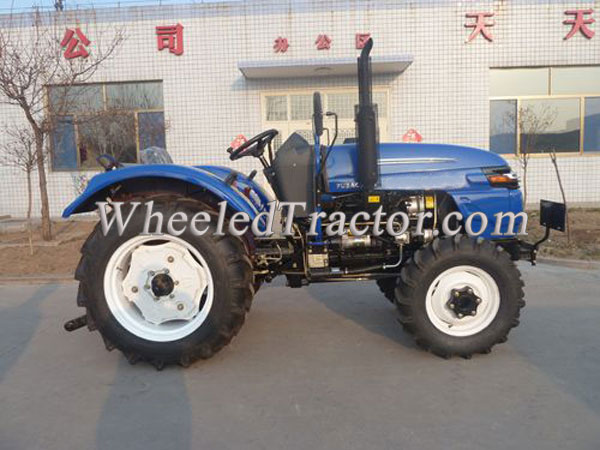

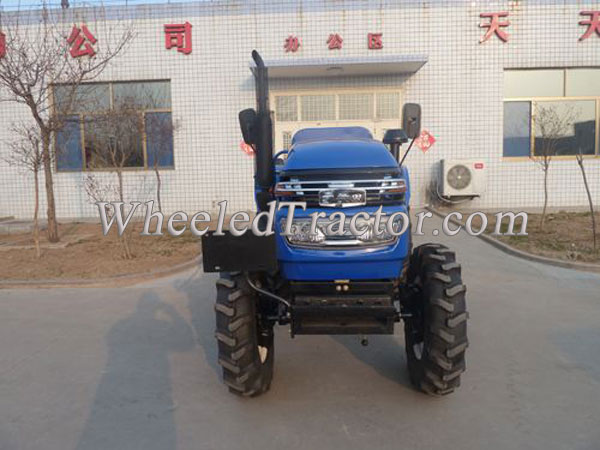

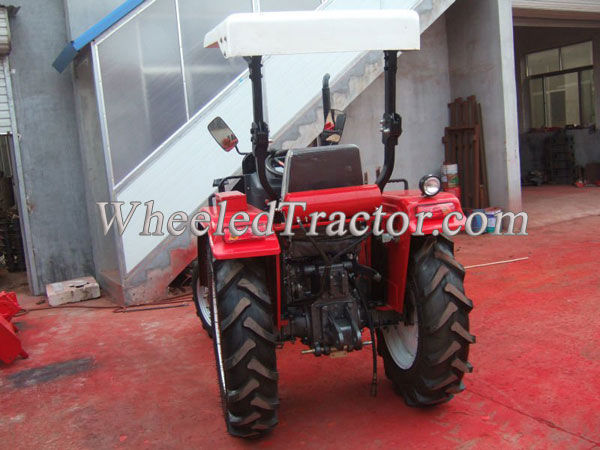

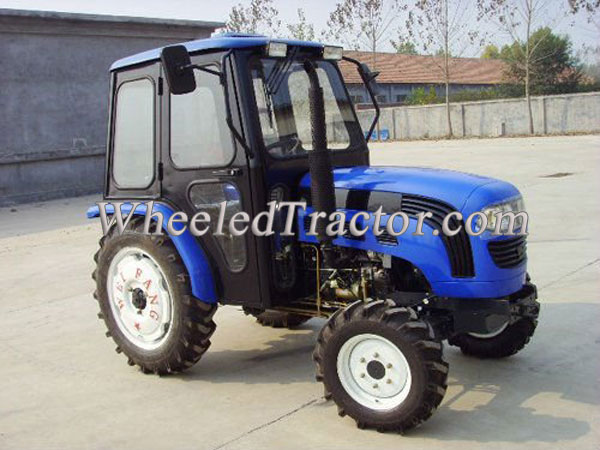

45HP Tractor
45HP Tractor Durable gear box and engines .Working with different agricultural tools can satisfy user's different demand
online service
| Model | 450/454 |
| Engine | |
| Engine Power KW/HP | 33,1 / 45 |
| Engine Type (Cyl, T/NA) | 3 ,Turbo charger /Natural Aspirated |
| Rated Speed (rpm) | 2200 |
| Engine Torque (Nm @ engine rpm) | ≥179.7,1500~1650 |
| Specific Fuel Consumption (L/h) | ≤10.1 |
| Emission Regulation availability (Euro I,II,II) | stageⅡ |
| Cooling type | Water cooling |
| Engine Displacement(L) | 3.039 |
| Air filter type | Oil Bath |
| Fuel tank capacity (litres) | 38 |
| Exhaust pipe (Vertical/Horizontal) | Vertical |
| Engine starter (kw) | 14V/350 |
| Alternator (V/w) | 3 |
| TRANSMISSION | |
| Type of clutch | Single, Dry |
| Total gears | 8 F + 4 R |
| Synchronized Gearbox (YES/NO) | NO |
| Min-Max speed | 2.43-31.88 F / 3.61-11.01R |
| Differential lock (limited slip/100% lock) | 100% lock |
| Max Drawbar Pull 2WD/4WD (KN) | 12.75/16.95 |
| Type of rear final drive (PLanetary, cascade), | Planetary/3 |
| PTO | |
| Pto speeds PT(rpm) | 540 / 760 |
| PTO speed @ engine speed | 540/760,2200 |
| PTO engagement | 8XΦ38/6XΦ35/21XΦ35 |
| PTO independent clutch (YES/NO) | YES |
| PTO shaft splines | 8 |
| HYDRAULIC SYSTEM | |
| Outlets pump type | gear pump |
| Max pressure (bar) | 160 |
| Max pump delivery @ engine rpm(ml/r),(rpm) | 16/2000 |
| Outlets valves function (Kick-out, Detent, Float) | Float |
| TECHNICAL DATA | |
| Overall size 2WD (LxWxH) / mm | 3700x1620x2130 |
| Max height with ROPS / mm | 2300 |
| Max height with CABIN / mm | 2500 |
| Rear Wheel track 2WD / mm | 1200-1500 |
| Front Wheel track 2WD / mm | 1200-1500 |
| Rear Wheel track 4WD / mm | 1200-1500 |
| Front Wheel track 4WD / mm | 1200 |
