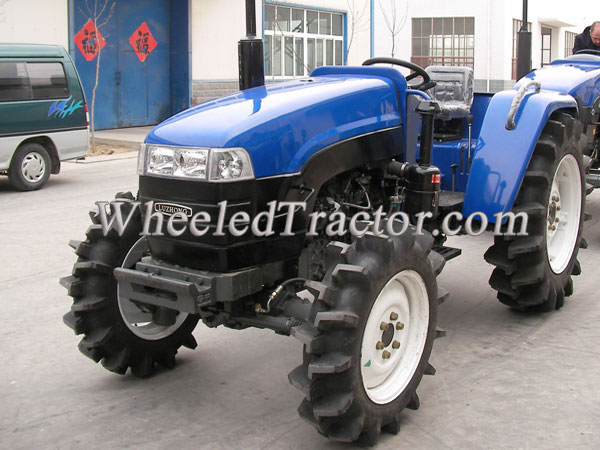

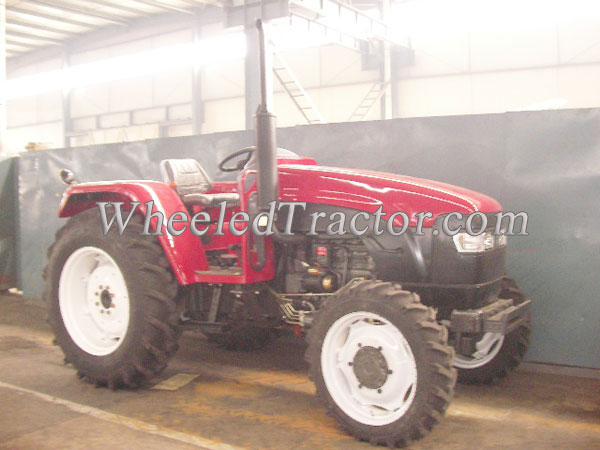

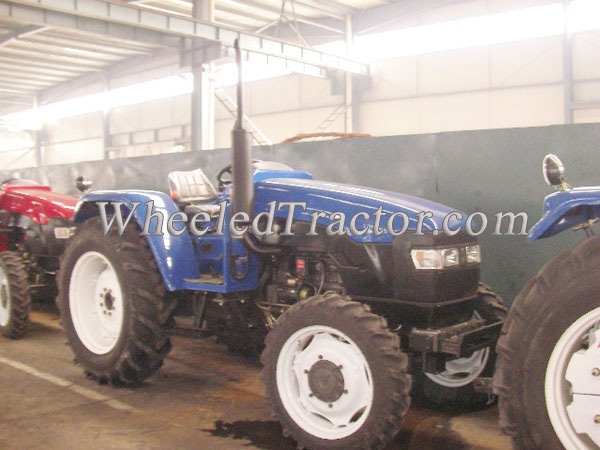

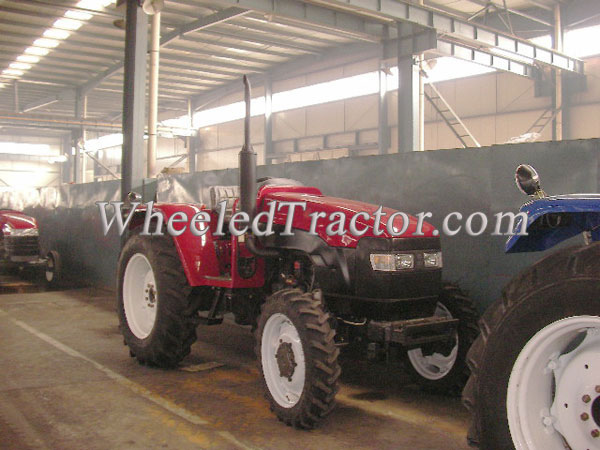

80HP Tractor
80HP Tractor, 800/804, 2WD, 4WD, oMre and more mature After-Sales Service;compact
online service
| Model | SH800/SH804 |
| Engine | |
| Engine Power KW/HP | 59 / 80 |
| Engine Type (Cyl, T/NA) | 4 ,Turbo charger /Natural Aspirated |
| Rated Speed (rpm) | 2300 |
| Engine Torque (Nm @ engine rpm) | 306,1600~1800 |
| Specific Fuel Consumption (L/h) | ≤17 |
| Emission Regulation availability (Euro I,II,II) | stageⅡ |
| Cooling type | WC |
| Engine Displacement(L) | 4.95 |
| Air filter type | Oil Bath |
| Fuel tank capacity (litres) | 126 |
| Exhaust pipe (Vertical/Horizontal) | Vertical |
| Engine starter (kw) | 3.7 |
| Alternator (V/w) | 4/900 |
| TRANSMISSION | |
| Type of clutch | Single, Dry |
| Total gears | 16 F + 8 R |
| Synchronized Gearbox (YES/NO) | NO |
| Min-Max speed | 0.463--34.873F / 0.622-10.789 R |
| Differential lock (limited slip/100% lock) | 100% lock |
| Max Drawbar Pull 2WD/4WD (KN) | 23.25/27.9 |
| Type of rear final drive (PLanetary, cascade), | Planetary,4 |
| PTO | |
| Pto speeds PT(rpm) | 760 / 1000 |
| PTO speed @ engine speed | 760 / 1000@2300 |
| PTO engagement | 8XΦ38/6XΦ35/21XΦ35 |
| PTO independent clutch (YES/NO) | YES |
| PTO shaft splines | 8 |
| HYDRAULIC SYSTEM | |
| Outlets pump type | gear pump |
| Max pressure (bar) | 20/ 2000 |
| Max pump delyvery @ engine rpm(ml/r),(rpm) | 2 |
| Outlets valves function (Kick-out, Detent, Float) | Float |
| TECHNICAL DATA | |
| Overall size 2WD (LxWxH) / mm | 4290x2100x2810 |
| Overall size 4WD (LxWxH) / mm | 4290x2100x2810 |
| Max height with ROPS | 2790 |
| Max height with CABIN / mm | 2860 |
| Rear Wheel track 2WD / mm | 1510 |
| Front Wheel track 2WD / mm | 1610 |
| Front Wheel track 4WD / mm | 1610 |
| Rear Wheel track 4WD / mm | 1620 |
