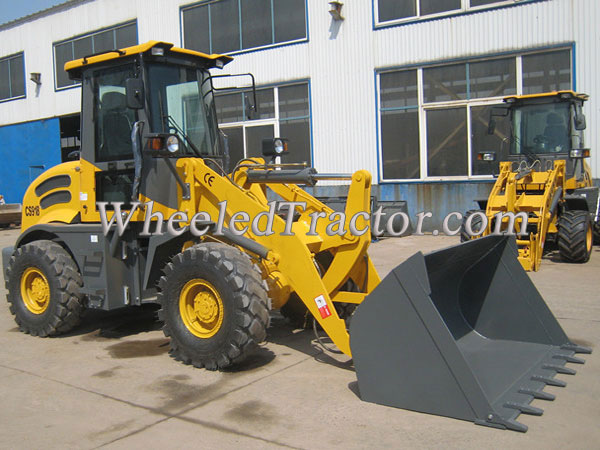

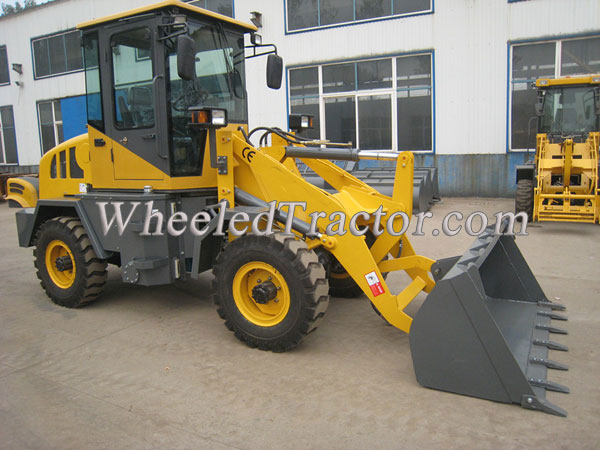

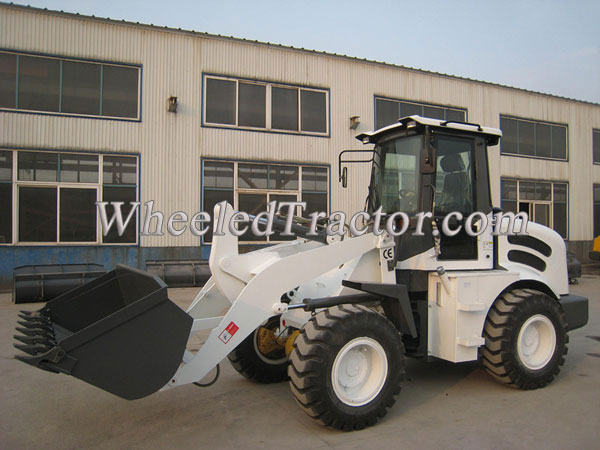

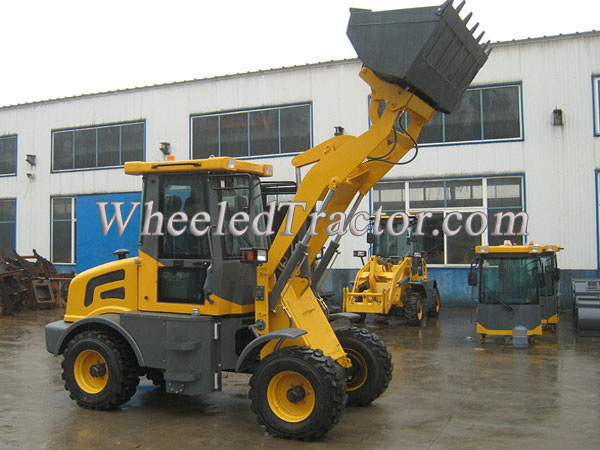

918 Wheel Loader
918 Wheel Loader,CE certificate, 4 wheel driveStandard bucket, 1.2 ton payloadTipping cabFull hydraulic torque converterMechanical pilot, Joystick controlChangchai 4L68/Xichai CE 37KW 4 cylinder diesel engine220V independent pr
online service
| Europe III 918 mini front wheel loader | ||
| Specification | overall weight(kg) | 4800 |
| L×W×H(mm) | 5600×1960×2680 | |
| rated bucket capacity(m3) | 1.0 | |
| Rated load(kg) | 1800 | |
| Maximum dump heigh (mm) | 2700 | |
| Bucket indicator | Yes | |
| Max. breakout force(KN) | 43 | |
| Engine | Model | Turbocharger 4100 Engine |
| Type | In-line arrangement, Water cooling, four-stroke | |
| Rated power(kw) | 60kw | |
| Rated speed(r/min) | 2200 | |
| Transmission system | Model of torque converter | YJ256 |
| Type | single-phase single-stage radial-inward turbine triplex | |
| Gearbox type | Fixed-spindle power shift | |
| Gear shift | 2 gears ahead,2 gear astern | |
| Hydraulic system | Distribution of work valve | ZL20B |
| Working pump | CBGj1045,CBGq1018 | |
| Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | 27±1° | |
| Min turning radius(mm) | 3000 | |
| Brake system | Brake type | Oil brake(Vacuum booster) |
| Tyres | Standard tyres | 23.5-16 |
| Optional wide tyres | 16/70-16 | |
1.Equipped with Turbocharger Engine
2. Strengthened and reliable transmission, drive axle
3. Optimized and choose the best quality Hydraulic component which increase the productivity ,sealing reliability
4. Articulated frame with box structure
5. Option attachment: wooden fork, pipe/pallet fork, grass fork, rock bucket, bigger bucket, long arm etc
