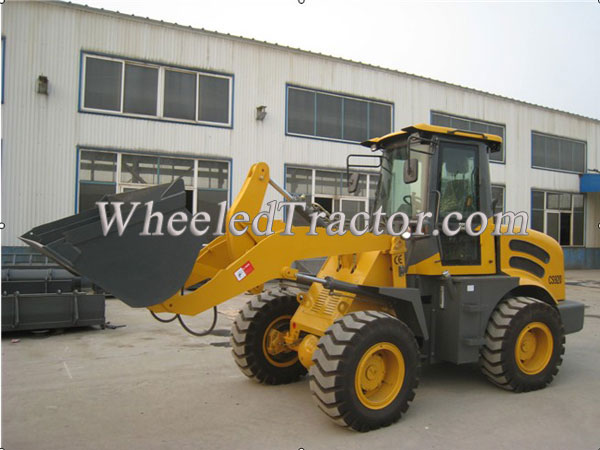

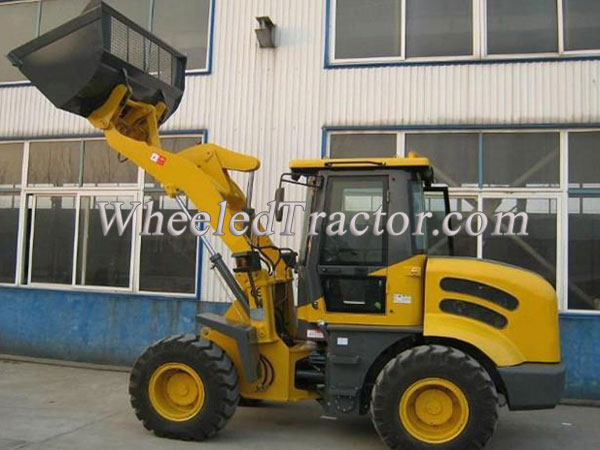

920 Wheel Loader
920 Wheel Loader 1 set in 1x20'GP, 3 sets in 1x40HQ, the cab and bucket need to be installed from wheel loder, then use triangle wood and 10mm wire to fix the machine
online service
1.Optional:Dongfeng Cummins, Weichai, Luotuo, Huafeng engine
2. High quality self-made hydraulic gearbox and driving axle.
3. Choose best hydraulic components, pilot operation, easy and durable.
4. Strong and durable frame, have the automatic flat function in high place.
5. (Quick change )option attachment: wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc

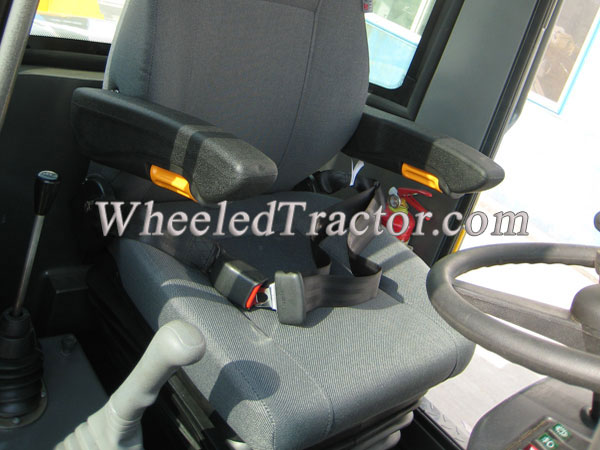

6. Luxurious cab, cab rollover, easy to keep and operate.

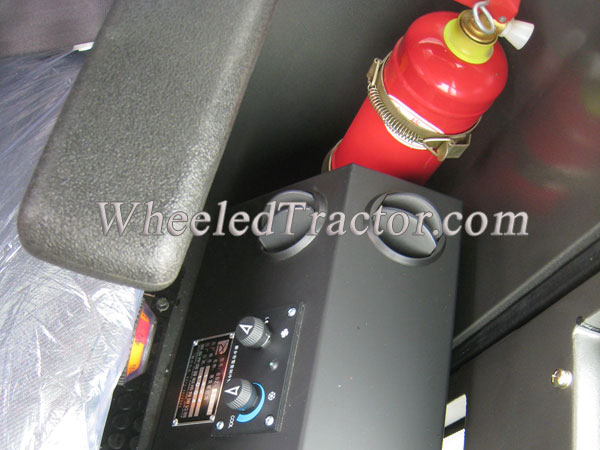

7. Changeable luxurious meter, air conditioner, back camera, more comfortable for driving.
8. high reliability and safer air assist disc brake braking system
9. according to clients request, customize higher dumping and longer arm products.
Specification
|
Model |
920 |
|
bucket capacity |
1.0m³ |
|
Rated load |
1800 kg |
|
Wheel base |
2300 mm |
|
Wheel Tread |
1830 mm |
|
Min.ground clearance |
300mm |
|
Max. dumping height |
2850 mm |
|
dump distance |
880mm |
|
Total times |
9s |
|
Operation weight |
4450kg |
|
engine model |
Huafeng4102（Turbo-charged） |
|
Rated power/ speed |
63kw/2400 rpm |
|
Overall dimension |
|
|
（L*W*H） |
4900*1830*2750mm |
|
Tyre |
23.5/70-16 |
