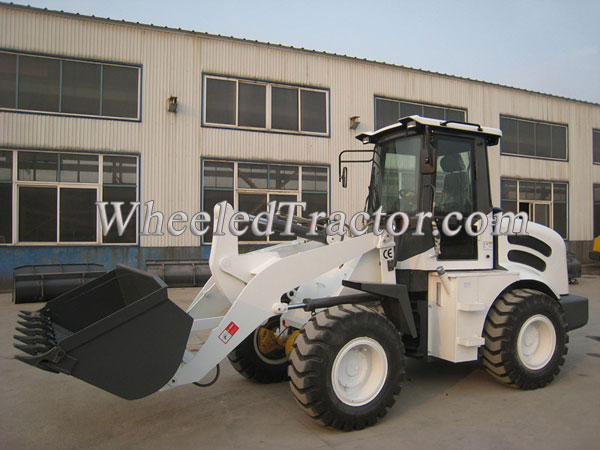

928 Wheel Loader
928 Wheel Loader with joystick control & hydraulic system, mini China made front end wheel loader 928,Fully hydraulic steering system, power shift transmission, easier operation,Bucket can be leveled automatically, optimized working device, higher pro
online service
Performance and characteristic
1.Optional:Dongfeng Cummins, Weichai, Luotuo, Huafeng engine
2. High quality self-made hydraulic gearbox and driving axle.
3. Choose best hydraulic components, pilot operation, easy and durable.
4. Strong and durable frame, have the automatic flat function in high place.
5. (Quick change )option attachment: wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc
6. Luxurious cab, cab rollover, easy to keep and operate.
7. Changeable luxurious meter, air conditioner, back camera, more comfortable for driving.
8. high pressure and safer air assist disc brake braking system
9. according to clients request, customize higher dumping and longer arm products.
Specification
1.Optional:Dongfeng Cummins, Weichai, Luotuo, Huafeng engine
2. High quality self-made hydraulic gearbox and driving axle.
3. Choose best hydraulic components, pilot operation, easy and durable.
4. Strong and durable frame, have the automatic flat function in high place.
5. (Quick change )option attachment: wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc
6. Luxurious cab, cab rollover, easy to keep and operate.
7. Changeable luxurious meter, air conditioner, back camera, more comfortable for driving.
8. high pressure and safer air assist disc brake braking system
9. according to clients request, customize higher dumping and longer arm products.
Specification
| Model | 928 |
| Bucket capacity | 1.3m³ |
| Rated load | 2500 kg |
| Wheel base | 2350 mm |
| Wheel Tread | 2150 mm |
| Min.ground clearance | 300mm |
| Max. dumping height | 3200 mm |
| dump distance | 880mm |
| Total times | 9s |
| Operation weight | 5700kg |
| engine model | WEICAHI HUAFENG 4108 |
| Rated power/ speed | 60kw/2400 rpm |
| Overall dimension | |
| （L*W*H） | 6300*2150*2840mm |
| Tyre | 16/70-20 |
