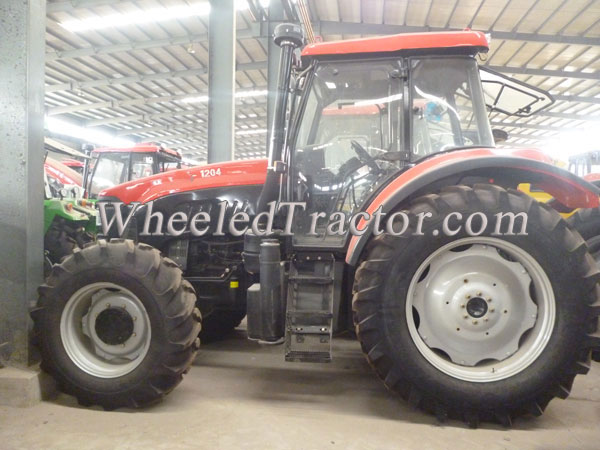

120HP Tractor
120HP Tractor Dimensions LengthWidthHeight(mm) 504022552870 WheelTread(mm) FrontWheel(mm) 16722003(4WD) RearWheel(mm) 16622262 Min.GroundClearance(mm) 470 DryMass WithCab(kg) 4850(4WD) Engine TradeMarkorBrand YTO EngineModel Verti
online service
| Basic configuration | |||
| Model | 1254 | ||
| Dimensions | Length×Width×Height(mm) | 5040×2255×2870 | |
| Wheel Tread(mm) | Front Wheel(mm) | 1672—2003(4WD) | |
| Rear Wheel(mm) | 1662—2262 | ||
| Min.Ground Clearance(mm) | 470 | ||
| Dry Mass | With Cab(kg) | 4850(4WD) | |
| Engine | Trade Mark or Brand | YTO | |
| Engine Model | Vertical Water Cooled 4-stroke | ||
| Directly Injection | |||
| Number of Cylinder | 6 | ||
| Cooling System Type | Water Cooled | ||
| Rated Power(kw) | 92KW | ||
| Rated Speed(r/min) | 2300 or 2400 | ||
| Fuel Tank | Volume(L) | 230 | |
| Transmission System | Clutch | Single,Dry,Dual Stage Type | |
| Gear Box | F12+R4 | ||
| Differential | Closed 4-planetary Gears | ||
| Differential Lock | Mechanical Sliding Sleeve | ||
| Braking System | Wet Double Plate Disc Brake | ||
| Running System | Tyre Model | F/R(4WD) | 14.9—26/18.4—38 |
| Steering System | Hydraulic Wheel Steering | ||
| Working Device | Hydraulic System Type | Positive lifter | |

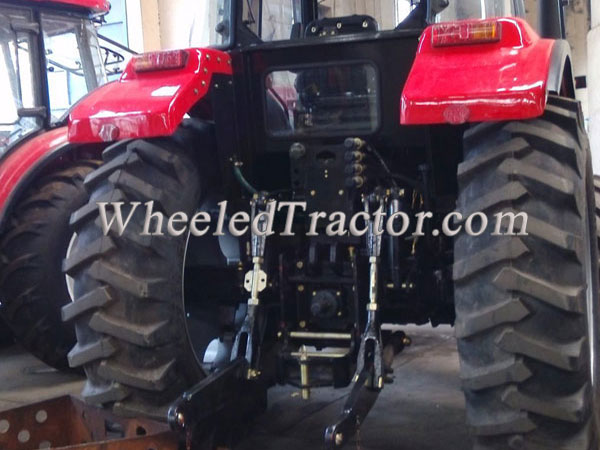

| Linkage Type | II Rear Mount 3-point Linkage | ||
| PTO(Standard) | φ38,8teeth φ35,6teeth | ||
| PTO Speed(r/min) | 540/1000r/min (540/720 720/1000) | ||
| Drawbar Type | Swing Drawbar | ||
| Luxury specification | Cab | AC | Heater |
| Multiple Unit Valve | Air Brake | Adjustable Seat | |
| Radio | CD Player | Luxurious Decoration | |
| Bob-weight | Frontballest | 500kg | |
| Rearballast | 300kg | ||
