1.6 Ton Wheel Loader
1.6 Ton Wheel Loader grass grab, straw grapple, log grab, timber grapple, lumber fork, pallet fork, bale grapple, bale clamps, four-in-one bucket, multi-purpose bucket, straight snow blade, angle snow plow, diagonal snow plough V-shaped snow blade
online service

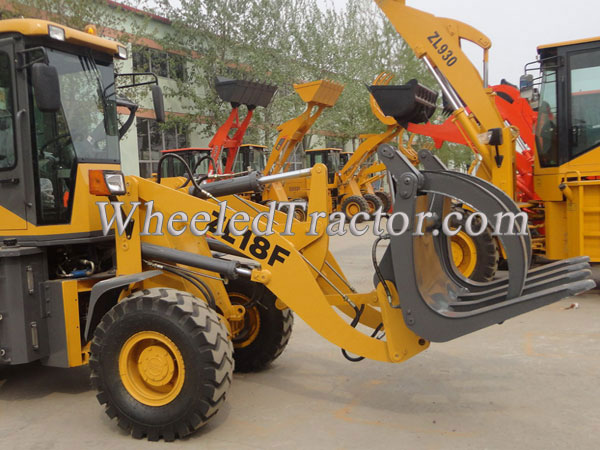

This CE wheel loader with 1.6T capacity can be equipped with optional hydraulic quick hitch (quick coupler), and this quick hitch enables this 1600kg capacity compact wheel loader to change quickly among multiple attachments, such ashay grapple, grass grab, straw grapple, log grab, timber grapple, lumber fork, pallet fork, bale grapple, bale clamps, four-in-one bucket, multi-purpose bucket, straight snow blade, angle snow plow, diagonal snow plough V-shaped snow blade, snow bucket, V snow plow, folding snow plough, snow removal bucket, snow blower, sand spreading bucket, drum grab, barrel grapple, bucket broom, pick-up broom, street sweeper, angle broom, diagonal broom, and hydraulic flail mower, etc.
| Model: ZL16F | ||
| Item | Parameters | |
| Performance | 1 .Rated Load | 1600 kg |
| 2. Total Weight | 3900 kg | |
| 3. Rated Bucket Capacity | 0.7 - 1.0 m3 | |
| 4. Max. Tractive Force | 30 KN | |
| 5. Max. Breakout Force | ≥ 32 KN | |
| 6. Max. Gradeability | 38° | |
| 7. Max. Dumping Height | 2800 mm/3200 mm | |
| 8. Max. Dumping Reach | 1000 mm | |
| 9. Raising Time | ≤ 5.0s | |
| 10. Total Cycle Time | ≤ 9.5 s | |
| 11. Overall Dimensions (L x W x H) | 5060*1690*2630 mm | |
| 12. Min. Turning Radius | 3200 mm | |
| Engine | 13. Model | WEICHAI HUAFENG ZHBG14-A / Cummins B3.3 (EPA Tier IV) |
| 14. Type | Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine | |
| 15. Rated Power | 44 kW / 45 kW (60HP) | |
| 16. Rated Speed | 2200 rpm | |
| 17. Min. Fuel Consumption Ratio | ≤ 230 g/kw·h | |
| Transmission | 18. Hydraulic Torque Converter | ZL265 Integrated Torque Converter |
| 19. Gear Shift | 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed | |
| 20. Max. Speed | 25 km/h | |
| Drive Axle | 21. Model of Axle | ZL16 Hub Reduction Axle (small) |
| 22. Wheel Tread | 1430 mm | |
| 23. Wheel Base | 2170 mm | |
| Drive | 24. Mode | 4-wheel Drive |
| Hydraulic System | 25. System Working Pressure | 16 Pa |
| 26. Fuel Tank Capacity | 90 L | |
| Brake System | 27. Service Brake | Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels |
| 28. Parking Brake | Hand Lever Flexible Shaft Controlled Disc Brake | |
| Tyre | 29. Type Specification | 14-17.5-14PR |
| 30. Front Tyre Pressure | 0.40 Mpa | |
| 31. Rear Tyre Pressure | 0.35 Mpa | |
