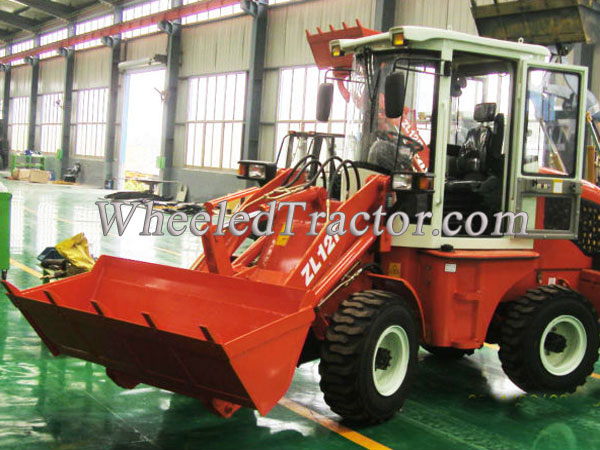

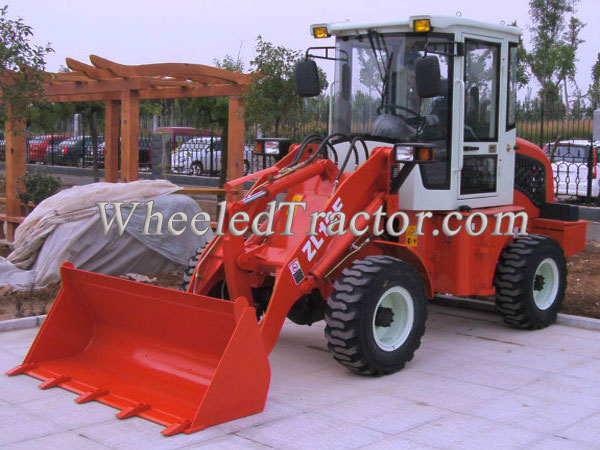

1.2 Ton Wheel Loader
1.2 Ton Wheel Loader bucket, EURO III Engine,articulated loader with electronic gearshift ,Pilot control torque converter, Hydraulic Quick Hitch,Front loader
online service
1.0 Engine Details
(1) Model: Changcai 4L68
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37KW
(4) Rated Speed: 2200 r/min (rpm)
(5) Fuel Consumption ratio in standard working condition: 269g/kw.h
2.0 Steering System
(1) Cycloid full hydraulic steering system: BZZ-125
(2) System Pressure: 10MPa
(3) Steering Cylinder: Φ76x Φ63x180
3.0 Bucket
(1) Bucket Capacity: 0.6 m3
(2) Bucket width: 1400mm
(3) Bucket type: Heavy-duty bolt on teeth
(4) Max. Breakout Force: 36KN
(5) Rated Load: 1200kg
(6) Operating Weight: 3360kg
4.0 Overall Dimensions
(1) Overall Length (Bucket on ground position): 5040mm
(2) Overall Height
(a) Ground to Cab Top: 2600mm
(b) Ground to exhaust pipe: It is below from the top of cabin
(c) Dumping Height: 2900mm
(3) Overall Width: 1680mm
5.0 Operating Specifications
(1) Drive Means: Four-wheel drive
(2) Min Turning Radius: 4500mm
(3) Driving System: Hydraulic transmission
(4) Dumping Height: 2900mm
(5) Min Base to the ground: 160mm
(6) Time of raise: 5sec.
(7) Total Cycling time(s): 9.5sec.
6.0 Brake System
(1) Service Brake: Four Wheel Hydraulic spread-shoed brake
(2) Parking Brake: Hand operated

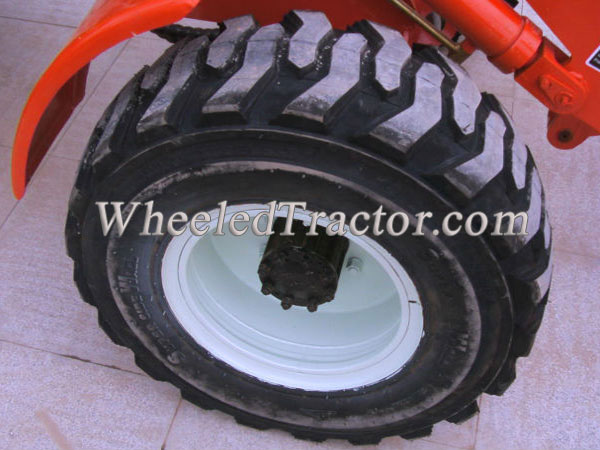

7.0 Tire
(1) Model: 12--16.5
(2) Width:3000mm
(3) Diameter:7800mm
8.0 Wheelbase: 2150mm
9.0 Track: 1400mm
