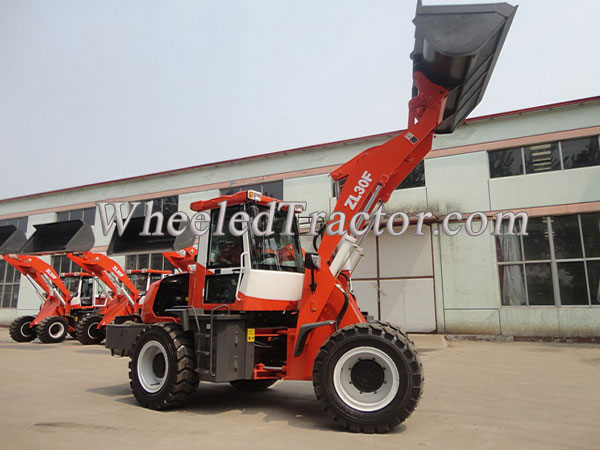

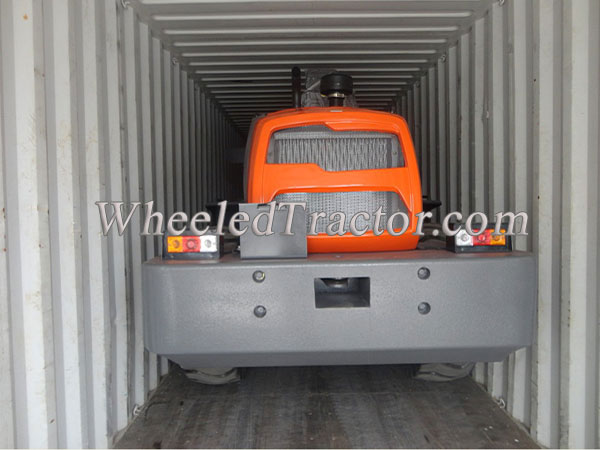

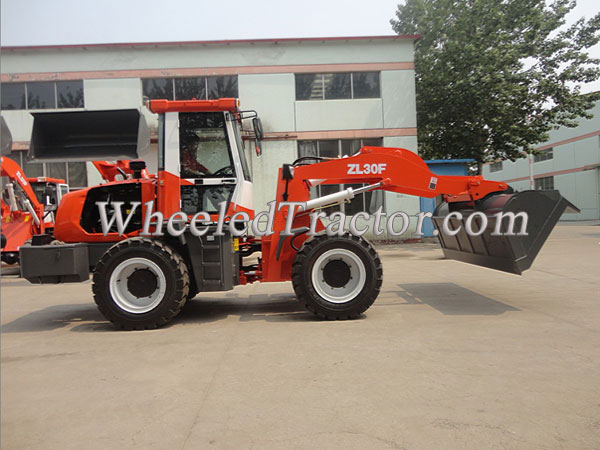

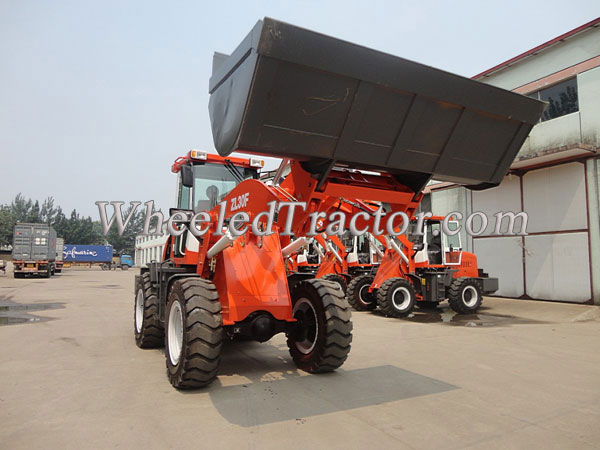

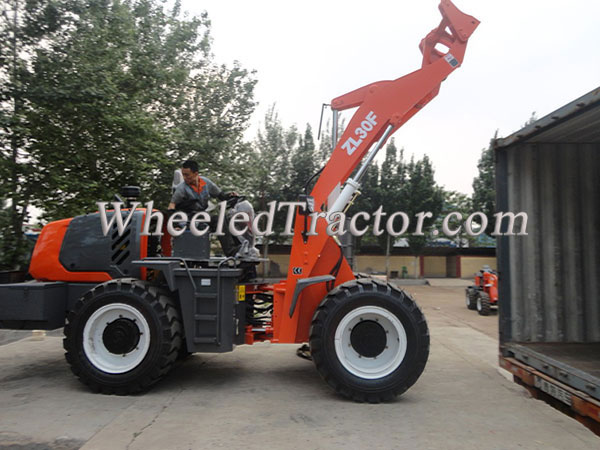

3.0 Ton Wheel Loader
3.0 Ton Wheel Loader,4 WD Wheel Loader,3T Wheel Loader,Optional Attachments and Colors,real factory with competitive price
online service
| Model: ZL30FS | ||
| Item | Parameters | |
| Performance | 1 .Rated Load | 3000 kg |
| 2. Total Weight | 7000 kg | |
| 3. Rated Bucket Capacity | 1.5 - 1.9 m3 | |
| 4. Max. Tractive Force | 61 KN | |
| 5. Max. Breakout Force | ≥ 72 KN | |
| 6. Max. Gradeability | 38° | |
| 7. Dumping Height | 3500 mm | |
| 8. Dumping Reach | 1300 mm | |
| 9. Raising Time | ≤ 6.0 s | |
| 10. Total Cycle Time | ≤ 11.5 s | |
| 11. Overall Dimensions (L x W x H) | 6900*2050*2950 mm | |
| 12. Min. Turning Radius | 3800 mm | |
| Engine | 13. Model |
WEICHAIHUAFENG 4RMAZG Turbocharged Engine YUCHAI YCD4J22T-115 Turbocharged Engine |
| 14. Type | Four-cylinder, Inline, Water-cooled, Four-stroke Engine | |
| 15. Rated Power | 83 kW/85 kW | |
| 16. Rated Speed | 2400 rpm | |
| 17. Min. Fuel Consumption Ratio | ≤ 210 g/kW·h | |
| Transmission | 18. Hydraulic Torque Converter | ZL280 Split Torque Converter |
| 19. Gear Shift | 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed | |
| 20. Max. Speed | 25 km/h | |
| Drive Axle | 21. Model of Axle | ZL20 Hub Reduction Axle (big) |
| 22. Wheel Tread | 1650 mm | |
| 23. Wheel Base | 2600 mm | |
| Drive | 24. Mode | 4-wheel Drive |
| Hydraulic System | 25. System Working Pressure | 20 MPa |
| 26. Fuel Tank Capacity | 100 L | |
| Brake System | 27. Service Brake | Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels |
| 28. Parking Brake | Flexible Shaft Controlled Disc Brake | |
| Tyre | 29. Type Specification | 16/70-24 |
| 30. Front Tyre Pressure | 0.40 Mpa | |
| 31. Rear Tyre Pressure | 0.35 Mpa | |
