0.8 Ton Wheel Loader

Use: Wheel loader ZL08F is widely used in construction works, public works, urban and rural parks, highway and transportation, station and wharf, and irrigation and water conservancy, as well as various coal pits, limekiln, coal yard, sand and stone quarry, cement mill, etc. It is especially applicable in narrow sites to shovel and load or transfer loosing soil, sand and stone, coal cinder, lime, fertilizer, trash and other loosing materials. This mini wheel loader can be used together with various trucks, tractors farm vehicles and construction machineries (sand mixer, pug mill), etc.
Features:

1. Using 8.25-16 ultra-wide tyres to increase the stability of the whole machine;
2. Running system adopts mechanical drive, and the power transmission mode adopts belt transmission ;
3. Power system adopts CHANGCHAI L28 single-cylinder engine to make the machine energy saving and environmentally friendly with high working efficiency;
4. 4-wheel drive and fully hydraulic steering make this mini wheel loader light and flexible;
5. The gear shift of this small wheel loader has 2 forward and 1 reverse shifts with high and low speed;

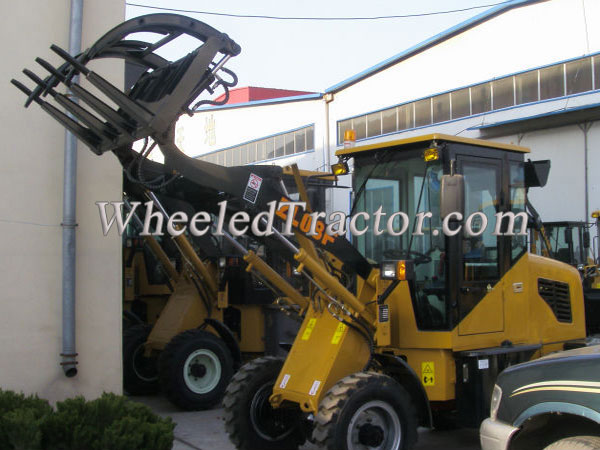

6. This compact wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple accessories, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab and barrel grapple, etc.

Model: ZL08F
	Item	Parameters
Performance	1 .Rated Load	800 kg
	2. Total Weight	2400 kg
	3. Rated Bucket Capacity	0.3 m3
	4. Max. Tractive Force	28 KN
	5. Max. Breakout Force	≥ 21 KN
	6. Max. Gradeability	38°
	7. Dumping Height	2680 mm
	8. Dumping Reach	900 mm
	9. Raising Time	≤ 4.0 s
	10. Total Cycle Time	≤ 9.0 s
	11. Overall Dimensions (L x W x H)	4800*1640*2550 mm
	12. Min. Turning Radius	3000 mm
Engine	13. Model	CHANGCHAI L28
	14. Type	Single-cylinder, Horizontal, Water-cooled Evaporative, Four-stroke Engine
	15. Rated Power	20 kw
	16. Rated Speed	2200 rpm
	17. Min. Fuel Consumption Ratio	≤ 244.8 g/kw·h
Transmission	18. Mode	Mechanical Shift
	19. Gear Shift	2 Forward, 1 Reverse, High & Low Speed
	20. Max. Speed	25 km/h
Drive Axle	21. Model of Axle	50 Axle
	22. Wheel Tread	1330 mm
	23. Wheel Base	2130 mm
Drive	24. Mode	4-wheel Drive
Hydraulic System	25. System Working Pressure	16 Pa
	26. Fuel Tank Capacity	60 L
Brake System	27. Service Brake	Drum Brake
Tyre	28. Type Specification	8.25-16
	29. Front Tyre Pressure	0.40 Mpa
	30. Rear Tyre Pressure	0.35 Mpa
